PA6JS – Light Spring

PA6JS

A medium reach, general purpose probe for testing at a minimum of 4.75mm centres.
Qty Price Each (£ GBP, EX VAT)
1 - 49 2.19
50 - 99 1.56
100 - 249 1.37
250 - 4999 1.22
Available Stock : 40

Lead time for additional qty approximately: 12 days

Single Item Price from: £2.19

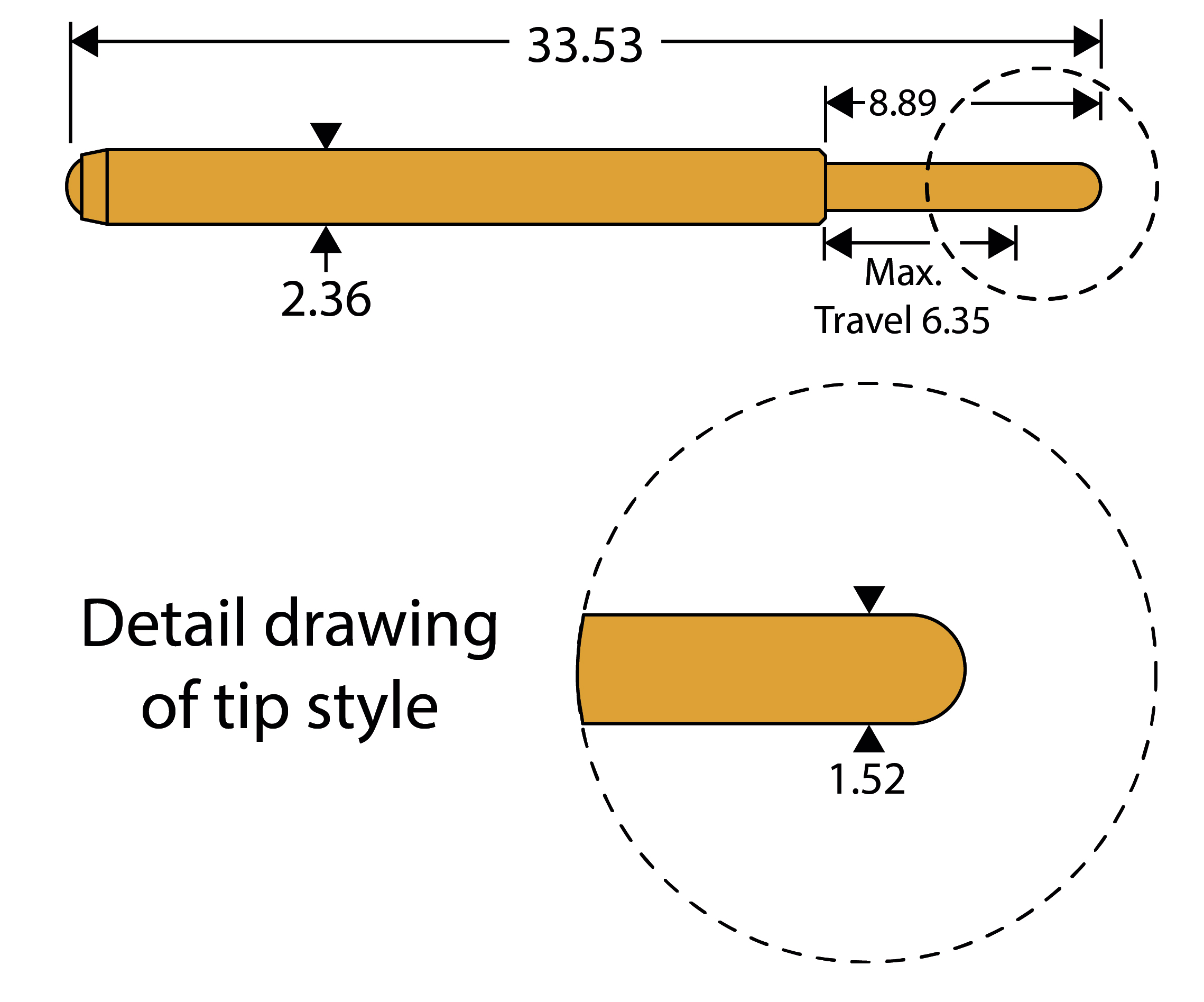

Test Probe Specification

Full travel
6.35mm (.250″)
Working travel
4.24mm (.167″)
Spring force
initial
at wkg travel
‘S’ light spring
63g
136g
‘X’ heavy spring
91g
195g
‘U’ heavy spring
190g
335g
Current rating DC cont (max)
7 Amps
Temperature range
Light spring
-55 to 105 C
Heavy spring
-55 to 150 C
Minimum test centres
4.75mm

Receptacle Specification

Mounting hole size: 2.72/2.77mm.
2.75mm drill is most commonly used:
Drill part no. DA6. Receptacle insertion tool part no. TA6
