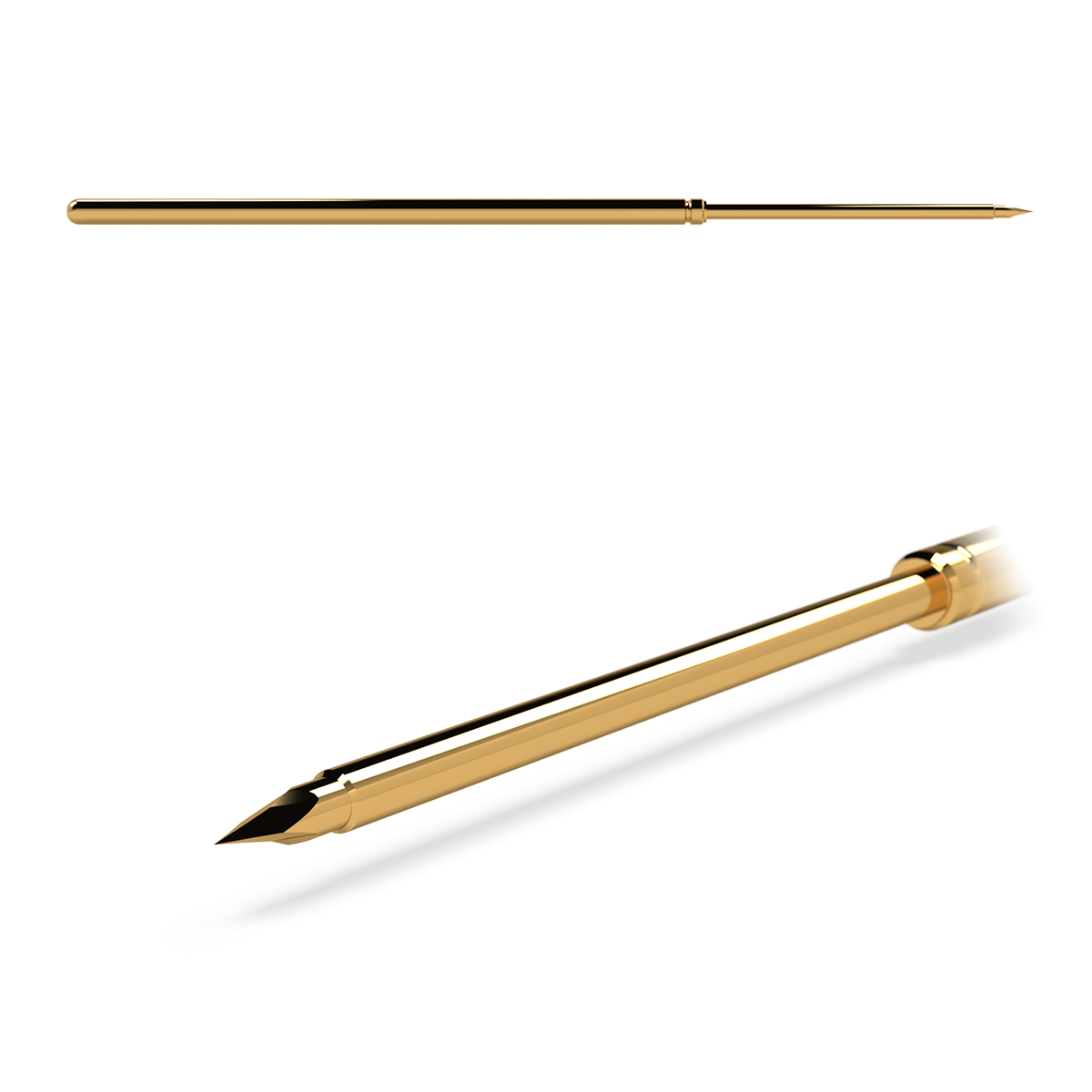

ELPA2KS
Designed for use in dual-level fixturing where two different sets of probes with different working travels are required in the same test fixture. The long reach of this item also enables access to contacts which are otherwise inaccessible with normal length probes.
| Qty | Price Each (£ GBP, EX VAT) |
|---|---|
| 1 - 1 | 1.53 |
Available Stock :
21
Lead time for additional qty approximately: 12 days
Single Item Price from: £1.53

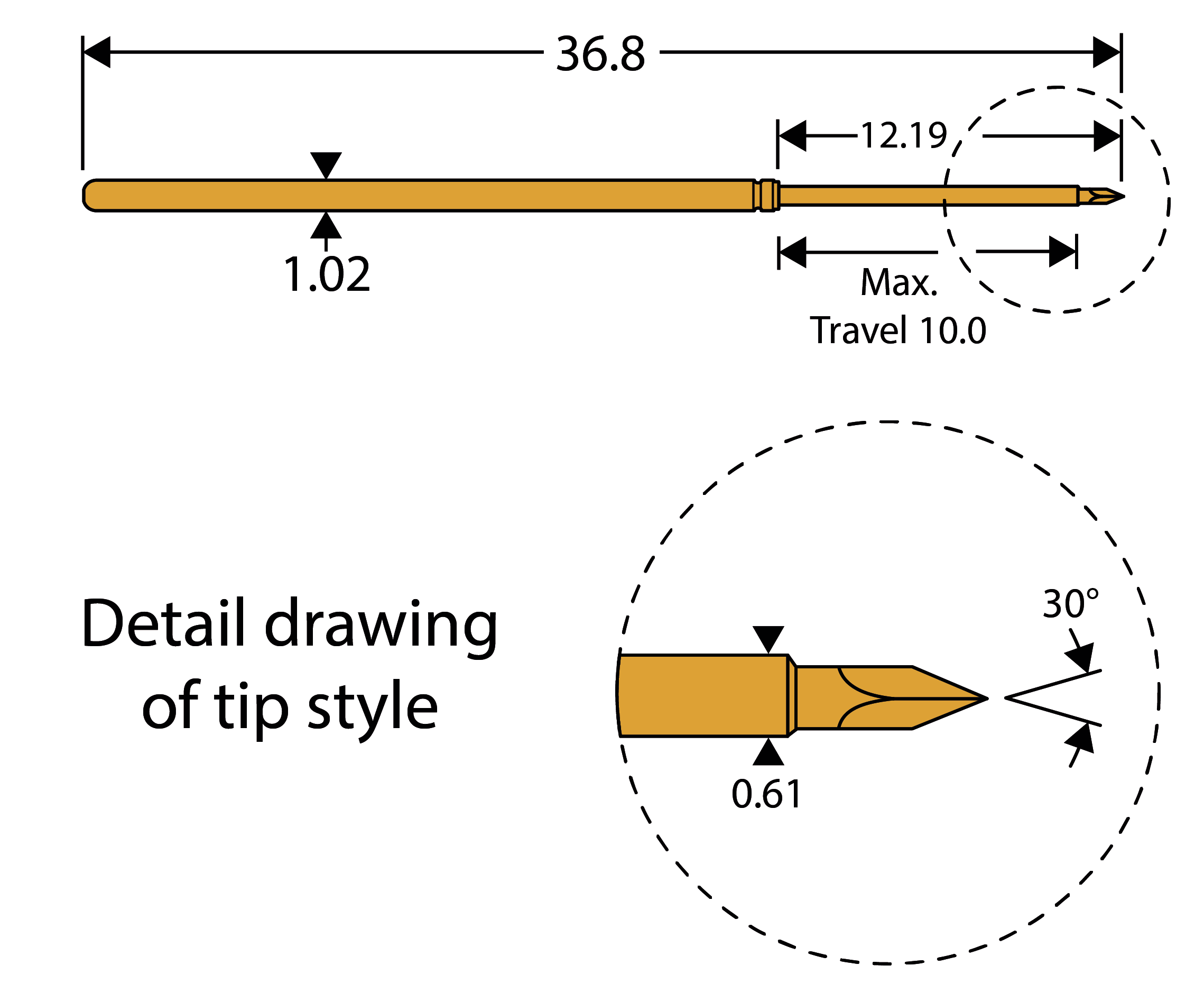

Test Probe Specification
| Full travel |
10mm (.394″)
|
| Working travel |
8mm (.315″)
|
| Spring forces |
at wkg travel
|
|
120g (4.2oz)
|
|
| Current rating DC cont (max) |
3 Amps
|
| Minimum test centres |
1.91mm (.0.75″)
|
Receptacle Specification
Mounting hole size: 1.35/1.4mm.
1.4mm drill is most commonly used:
Drill part no. DA2. Receptacle insertion tool part nos. TA2,TA2A
