ELPA2 Series

Designed for use in dual-level fixturing where two different sets of probes with different working travels are required in the same test fixture. The long reach of this item also enables access to contacts which are otherwise inaccessible with normal length probes.

Specification Details

Test Probe Specification

Full travel
10mm (.394″)
Working travel
8mm (.315″)
Spring forces
at wkg travel

120g (4.2oz)
Current rating DC cont (max)
3 Amps
Minimum test centres
1.91mm (.0.75″)

Receptacle Specification

Mounting hole size: 1.35/1.4mm.
1.4mm drill is most commonly used:
Drill part no. DA2. Receptacle insertion tool part nos. TA2,TA2A

How To Use

Product Selection (PDF)
Watch our YouTube video about test probe and receptacle selection
Fitment & Usage (PDF)
After Care (PDF)



For pricing, availability or to place an order, click on a part no. below.
See receptacles and tools at bottom of page.

Tip Style Super Sharp Blade
Coda Systems | ELPA2 Series 0
Tip Style Plain Crown

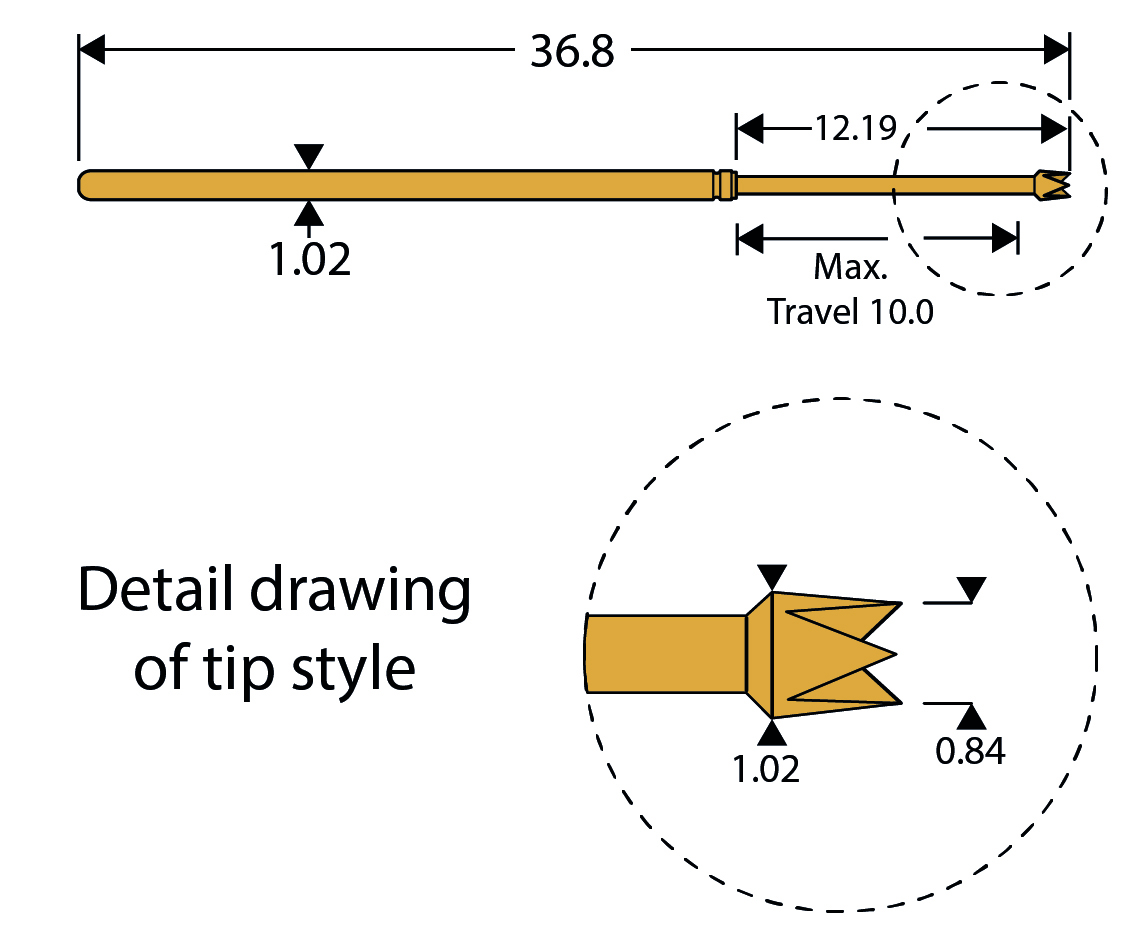

Coda Systems | ELPA2 Series 1
