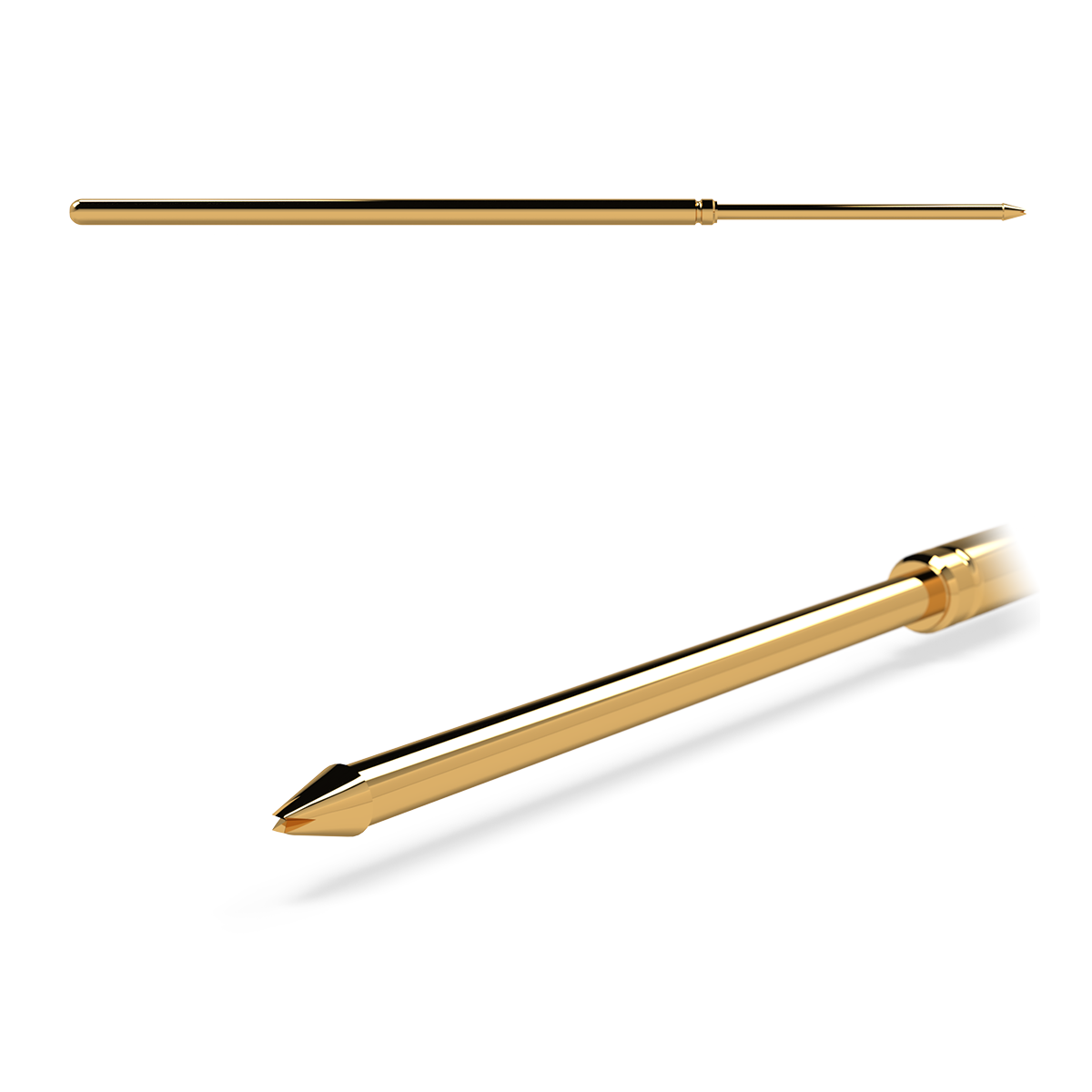

ELPA2QS

ELPA2QS

Designed for use in dual-level fixturing where two different sets of probes with different working travels are required in the same test fixture. The long reach of this item also enables access to contacts which are otherwise inaccessible with normal length probes.
Qty Price Each (£ GBP, EX VAT)
1 - 1 1.53
Available Stock : 0

Lead time for additional qty approximately: 12 days

Single Item Price from: £1.53

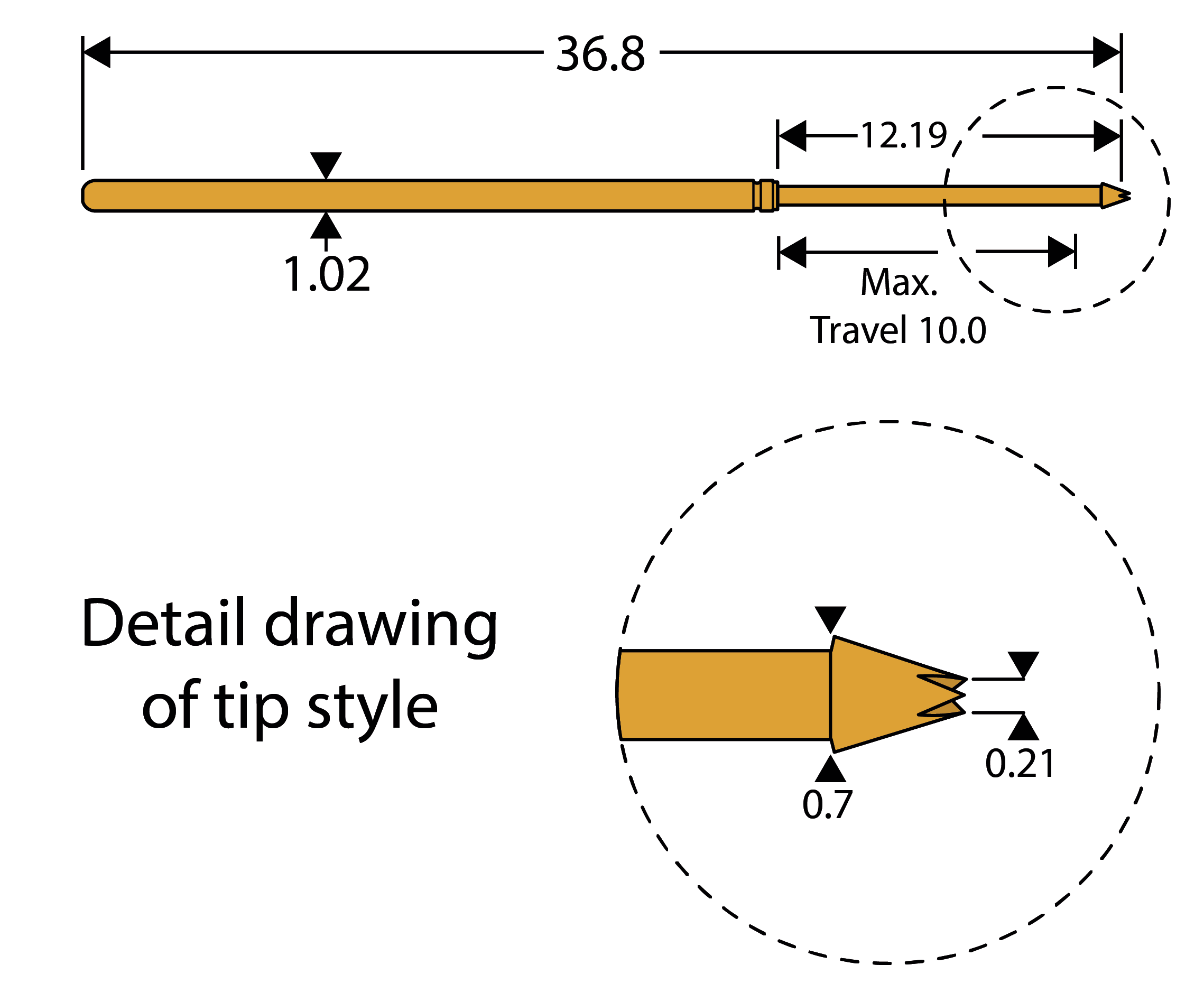

Test Probe Specification

Full travel
10mm (.394″)
Working travel
8mm (.315″)
Spring forces
at wkg travel

120g (4.2oz)
Current rating DC cont (max)
3 Amps
Minimum test centres
1.91mm (.0.75″)

Receptacle Specification

Mounting hole size: 1.35/1.4mm.
1.4mm drill is most commonly used:
Drill part no. DA2. Receptacle insertion tool part nos. TA2,TA2A
