SD-Micro-2-LT

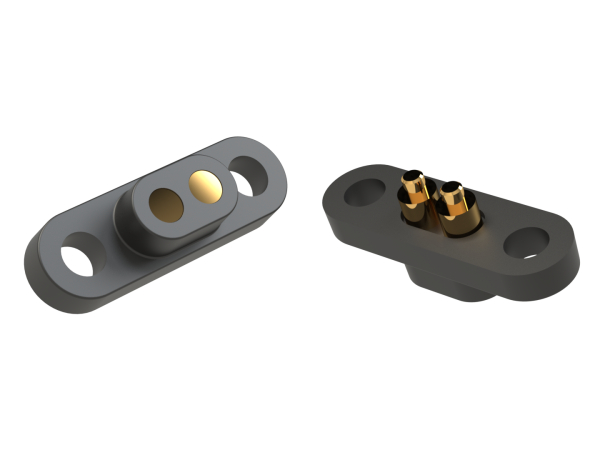

In stock now .. our smallest docking connector yet, the Swift-Dock-Micro

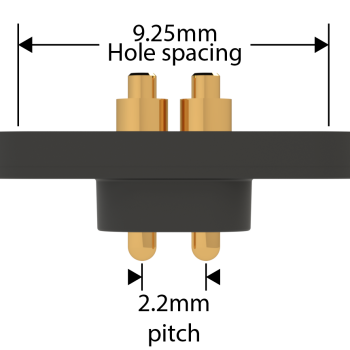

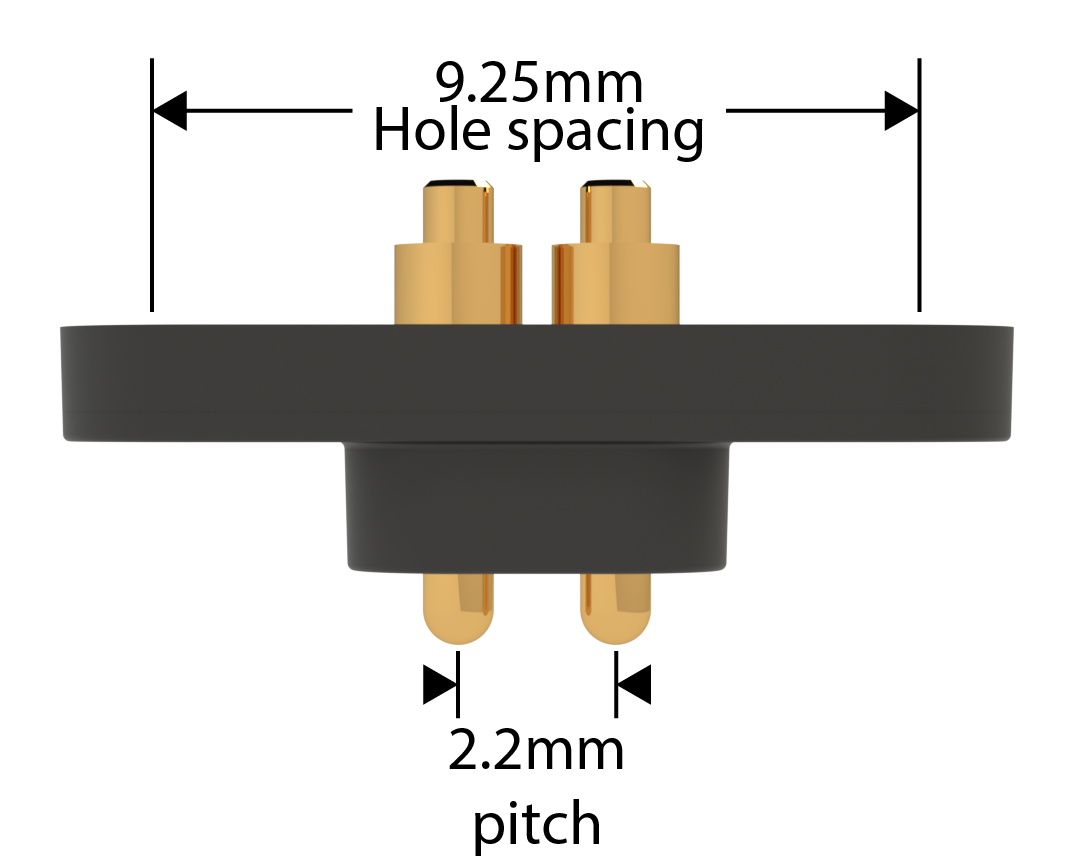

With a minimum center spacing of just 2.2mm, this is the contact land side of our two pin, spring loaded docking connector, with standard lug fitment. Specifically designed for internal battery charging of wearable applications such as headsets, belt worn devices, bodycams, ankle tags and smart watches for safety, sporting, security and leisure applications.
Please download the CAD files in the downloads tab below.
With a minimum center spacing of just 2.2mm, this is the contact land side of our two pin, spring loaded docking connector, with standard lug fitment. Specifically designed for internal battery charging of wearable applications such as headsets, belt worn devices, bodycams, ankle tags and smart watches for safety, sporting, security and leisure applications.
Please download the CAD files in the downloads tab below.
Available Stock :
275
Lead time for additional qty approximately: 12 days
Single Item Price from: £2.45
| Qty | Price Each (£ GBP, EX VAT) |
|---|---|
| 1 - 49 | 2.45 |
| 50 - 99 | 2.35 |
| 100 - 249 | 2.25 |
| 250 - 499 | 2.15 |
| 500 - 999 | 2.05 |
| 1000 - 4999 | 1.95 |
| 5000 - 9999 | 1.70 |
| 10000 - 49999 | 1.35 |
| 50000 - 99999 | 1.30 |
Contact Land Specification
| No. of contacts |
2
|
| Current rating DC (max) |
250mA amps DC continuous per pin
|
| Material; spring contact & land |
Gold plated Lead free brass
|
| Operating temperature range |
-40 – to +150’C
|
Moulding Specification
| Material |
Nylon6
|
| Colour |
Black. Other colours available for volume qtys
|
| Fitment specification |
Fit into a dedicated slot in the casework
|
| UL rating |
UL94-2. By request UL94-0
|
| IP rating |
IP67
|
Connection specification
| Solder pins into a PCB, or flexi-circuit cable assembly having a solder connection |
Related Products
SD-Micro-2, docking connector, lug fitment
SD-Micro-2-SCT, spring contact side
