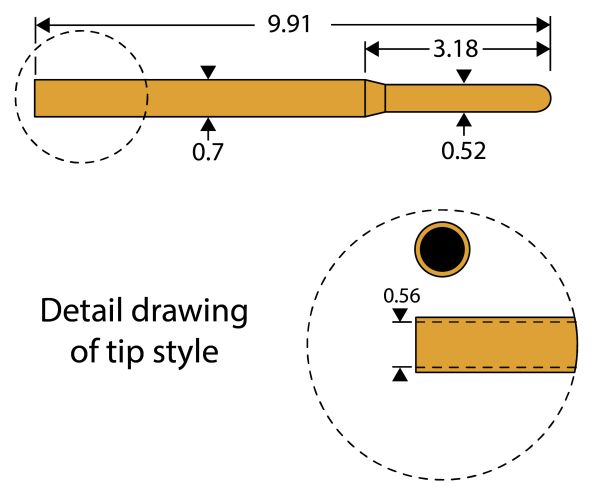

RM4T
Receptacle for PM4 series micro test probes; Terminal
| Qty | Price Each (£ GBP, EX VAT) |
|---|---|
| 1 - 49 | 1.31 |
| 50 - 99 | 0.93 |
| 100 - 249 | 0.82 |
| 250 - 499 | 0.72 |
| 500 - 999 | 0.65 |
| 1000 - 2999 | 0.59 |
| 3000 - 4999 | 0.54 |
| 5000 - 9999 | 0.51 |
| 10000 - 19999 | 0.46 |
Available Stock :
22
Lead time for additional qty approximately: 12 days
Single Item Price from: £1.31
Test Probe Specification
| Minimum test centre |
1.0mm
|
| Full travel |
1.91mm
|
| Working travel |
1.27mm
|
| Spring force |
at wkg travel
|
|
49g
|
|
| Current rating DC (max) |
2 Amps
|
| Temperature range |
-55 to 150 C
|
| Drill hole size |
0.75mm
|
Installation
The tail of this PM4 series micro test probe plugs into a socket installed in a second block which is located beneath the probe plate. This allows the probe to be a replaceable item, without the extra width of a receptacle around it. The RM4C socket can either have a cable crimped or soldered to it. It can also accept the RM4T terminal plug.
