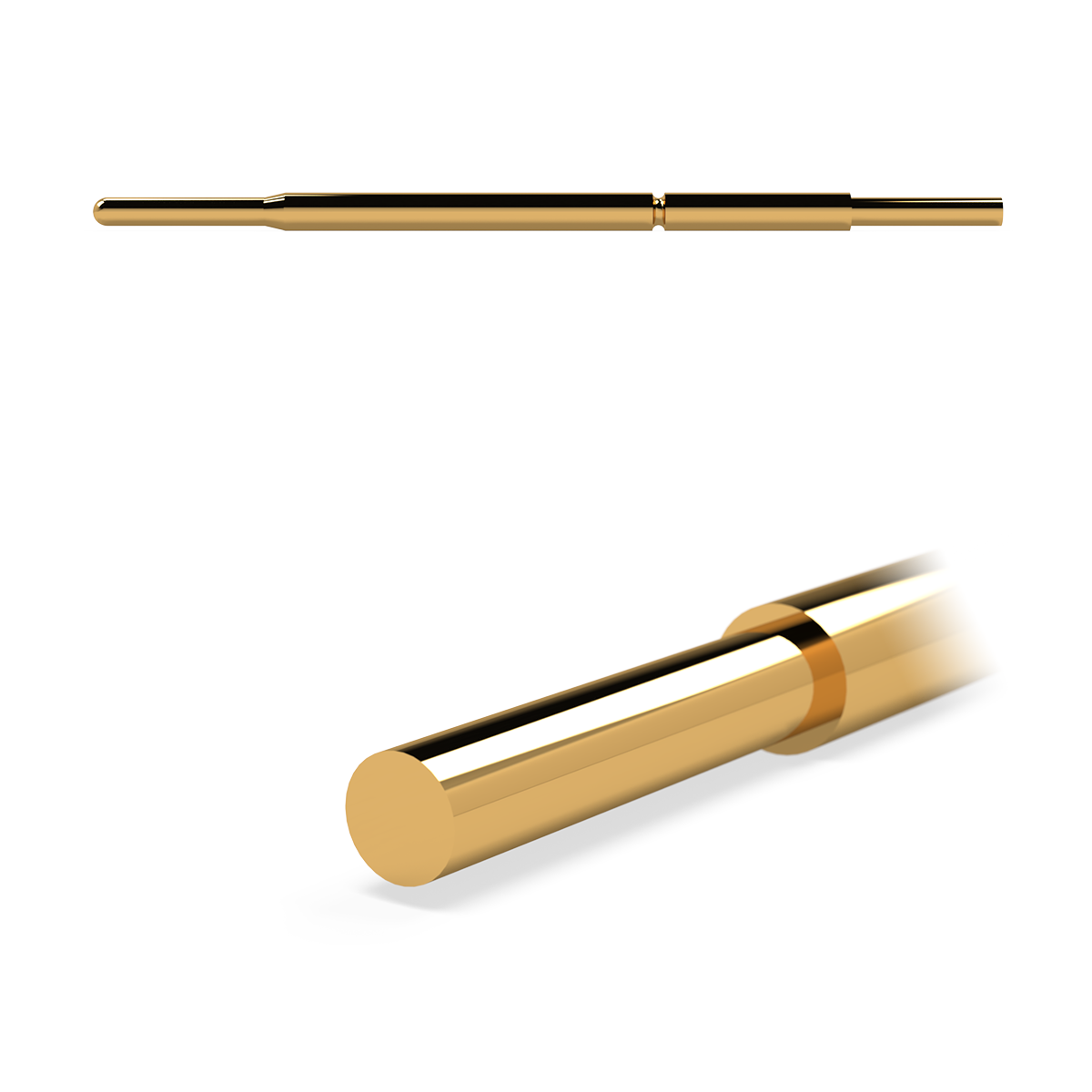

PM4C
Micro test probe for testing to 1mm test centres.Replaceable. Plain flat tip-style.
| Qty | Price Each (£ GBP, EX VAT) |
|---|---|
| 1 - 49 | 2.35 |
| 50 - 99 | 2.25 |
| 100 - 249 | 2.20 |
| 250 - 499 | 2.15 |
| 500 - 999 | 2.05 |
| 1000 - 2999 | 1.95 |
Available Stock :
159
Lead time for additional qty approximately: 12 days
Single Item Price from: £2.35
Test Probe Specification
| Minimum test centre |
1.0mm
|
| Full travel |
1.91mm
|
| Working travel |
1.27mm
|
| Spring force |
at wkg travel
|
|
49g
|
|
| Current rating DC (max) |
2 Amps
|
| Temperature range |
-55 to 150 C
|
| Drill hole size |
0.75mm
|
Installation
The tail of this PM4 series micro test probe plugs into a socket installed in a second block which is located beneath the probe plate. This allows the probe to be a replaceable item, without the extra width of a receptacle around it. The RM4C socket can either have a cable crimped or soldered to it. It can also accept the RM4T terminal plug.
