HD-PC8DS

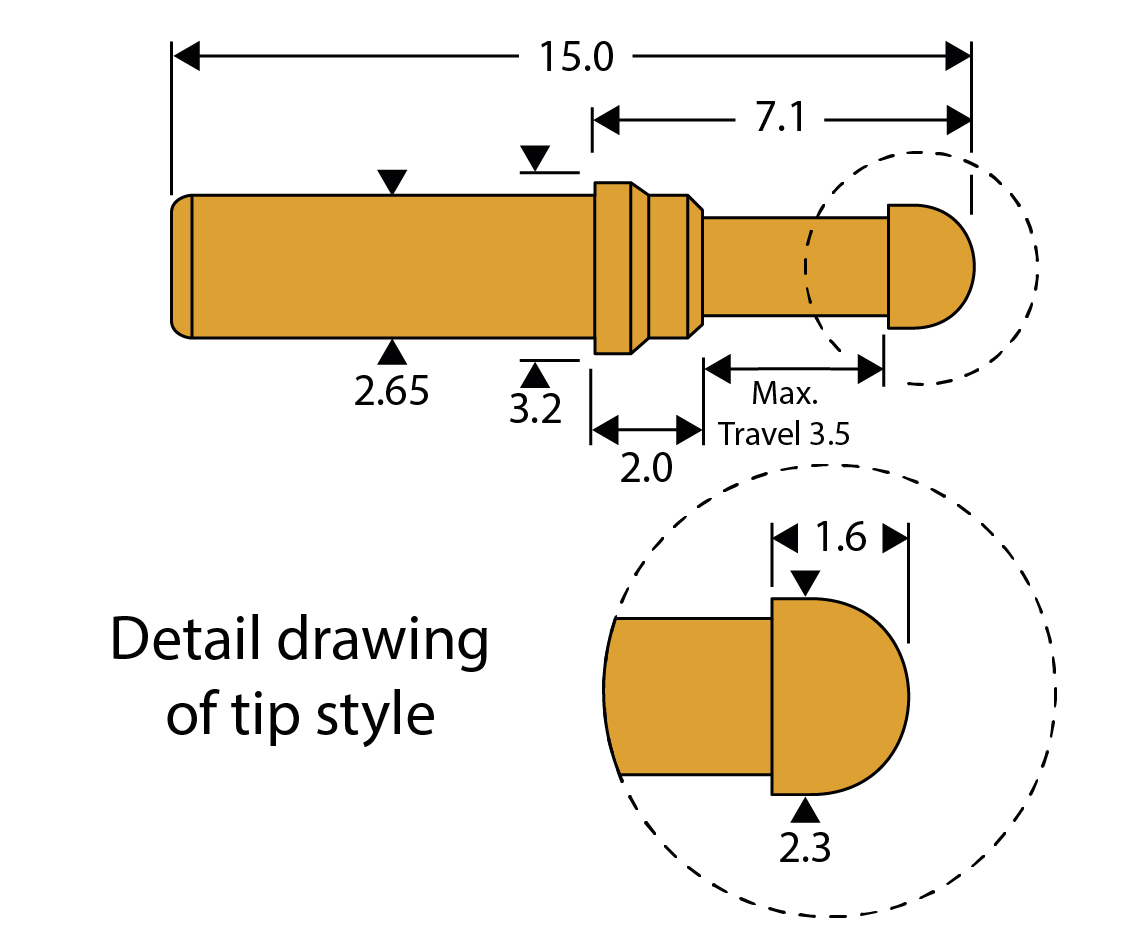

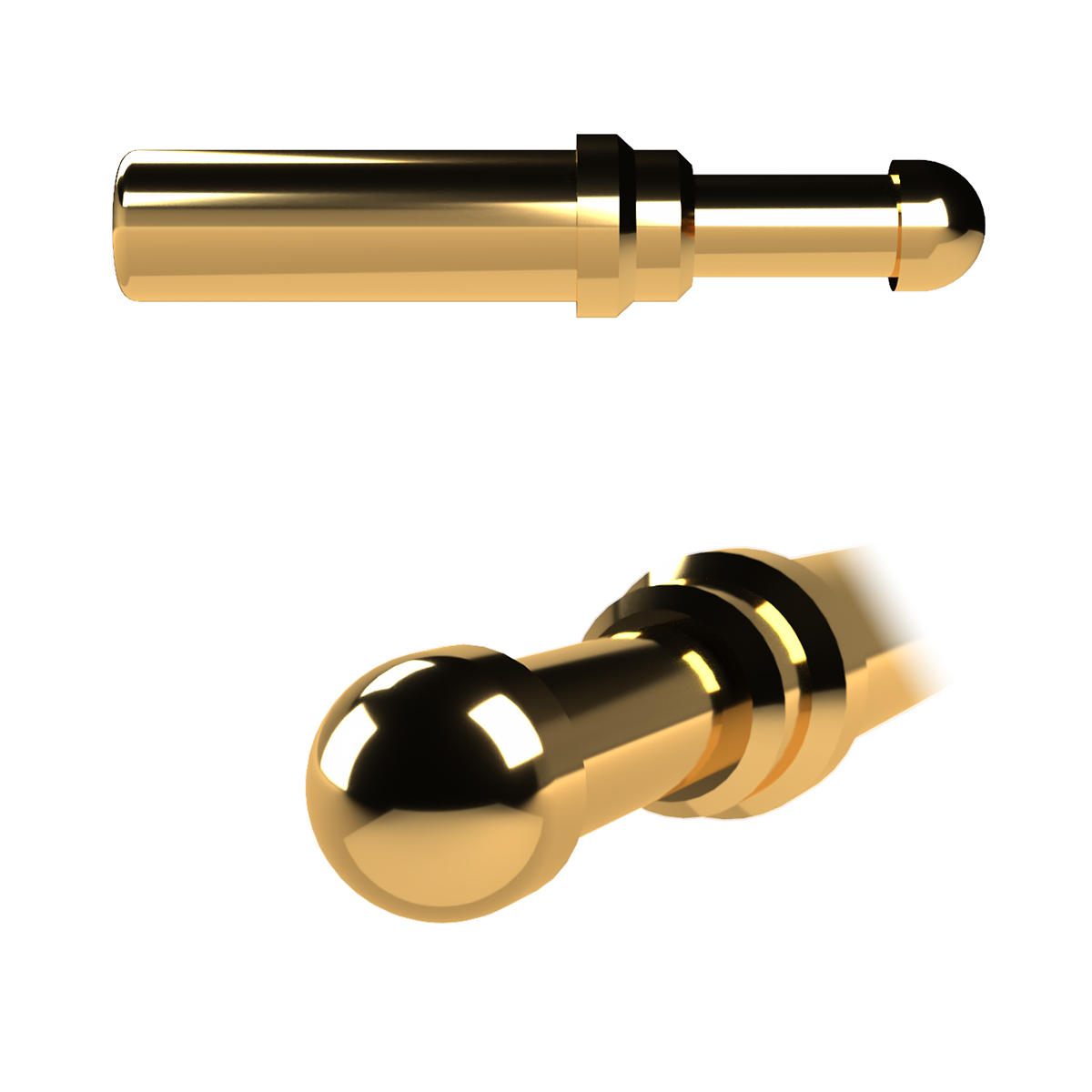

High current test probe for load and functional testing of power components, wound components and batteries. The short overall length is useful in positions where space is minimal. Radius tip-style.
| Qty | Price Each (£ GBP, EX VAT) |
|---|---|
| 1 - 99999 | 6.71 |
Available Stock :
10
Lead time for additional qty approximately: 16 days
Single Item Price from: £6.71
Test Probe Specification
| Full travel |
3.5mm
|
| Working travel |
2.8mm
|
| Spring force |
at wkg travel
|
|
150g
|
|
| Operating temp. range |
-100 C to +200 C
|
| Current rating DC cont (max) |
24 Amps DC max.
|
| Minimum test centres |
4.0mm (.187″)
|
Receptacle Specification
Mounting hole size: 3.0mm.
Drill part no. DS6
How To Use
Product Selection (PDF)
Watch our YouTube video about test probe and receptacle selection
Fitment & Usage (PDF)
After Care (PDF)
Related Products
Receptacle: Solder-Pot, Press Fitment
RC8S
Mating Contact Land - Flat Head
