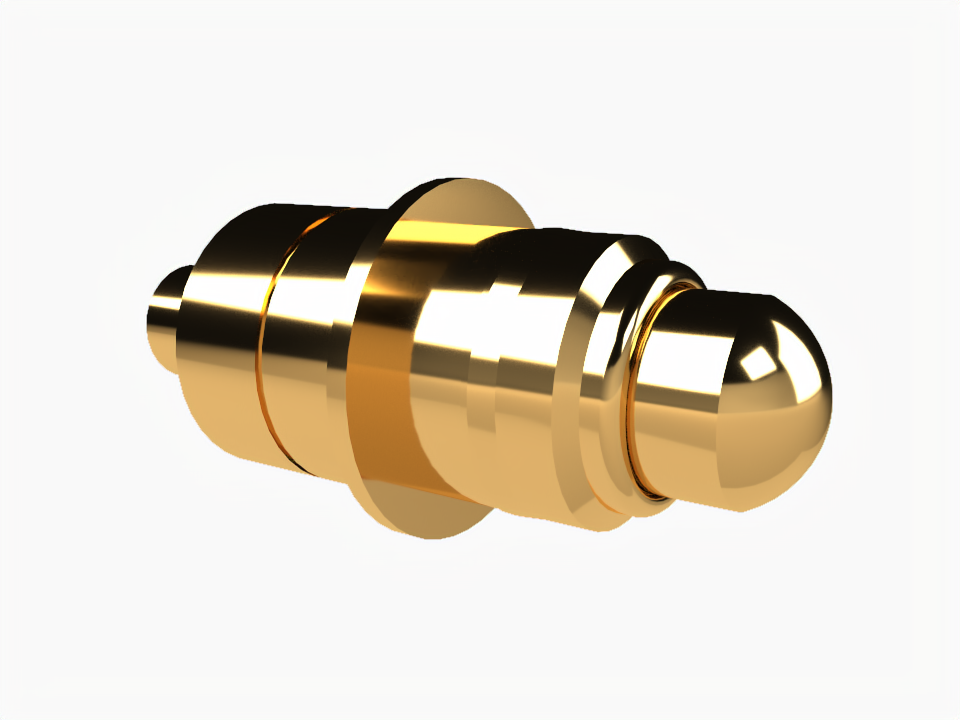

PD16JXT-SP-WET

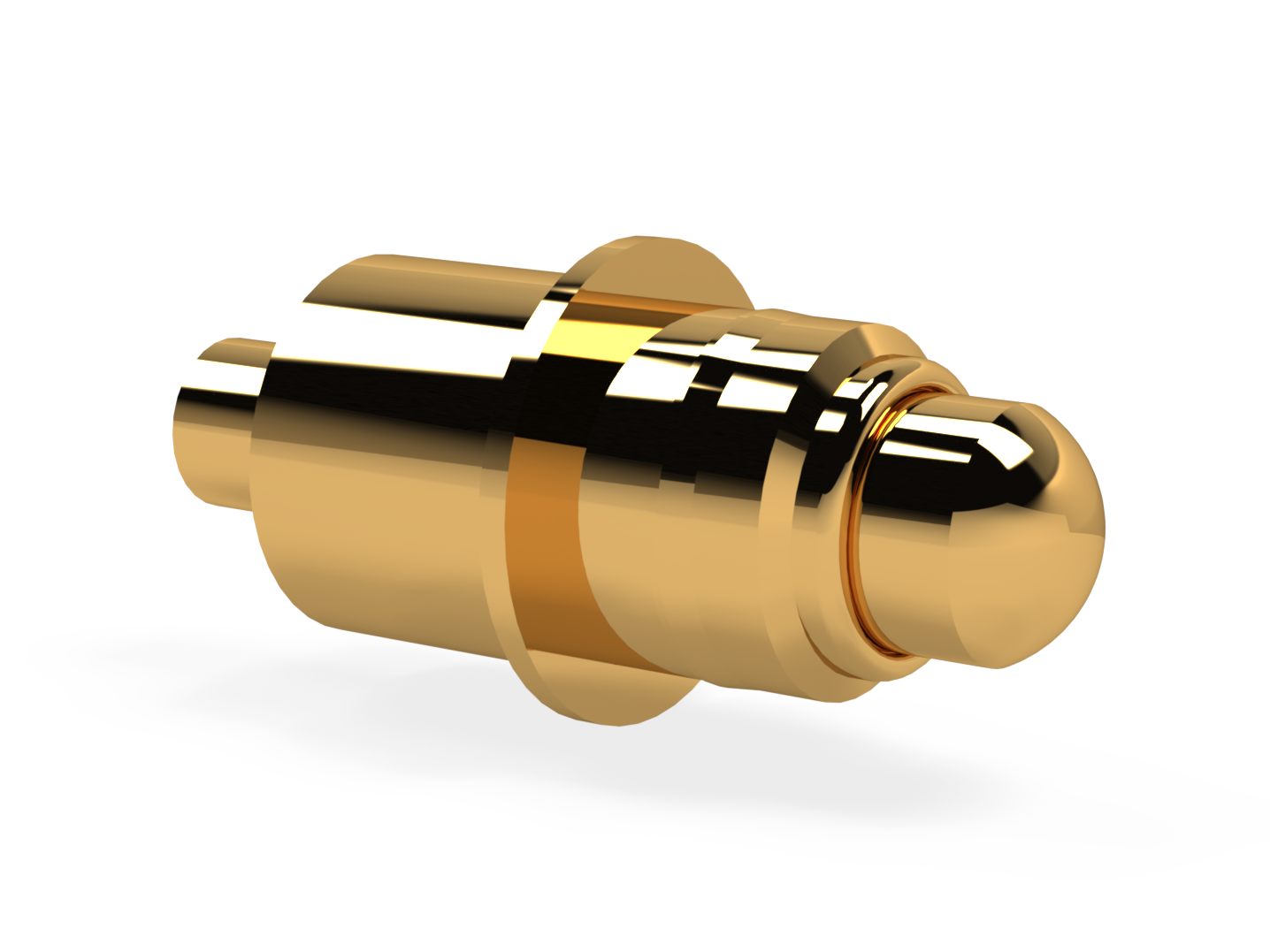

Water and dust resistant spring contact.
A low profile, large sized spring contact with sealed plunger to stop ingress of water or dust which allows it to be used in all weathers or dusty environments. Has a solderpot tail for direct wire or PCB connection. Ideal for robust applications in inclement weather conditions. Has a current rating of 8 amps. Features a barb for retention in a plastic moulding.
A low profile, large sized spring contact with sealed plunger to stop ingress of water or dust which allows it to be used in all weathers or dusty environments. Has a solderpot tail for direct wire or PCB connection. Ideal for robust applications in inclement weather conditions. Has a current rating of 8 amps. Features a barb for retention in a plastic moulding.
| Qty | Price Each (£ GBP, EX VAT) |
|---|---|
| 1 - 24 | 6.25 |
| 25 - 49 | 5.95 |
| 50 - 99 | 5.75 |
| 100 - 249 | 5.55 |
| 250 - 499 | 5.35 |
| 500 - 999 | 5.15 |
| 1000 - 2999 | 4.95 |
| 3000 - 4999 | 4.65 |
| 5000 - 9999 | 4.55 |
| 10000 - 29999 | 4.25 |
Available Stock :
282
Lead time for additional qty approximately: 45 days
Single Item Price from: £6.25

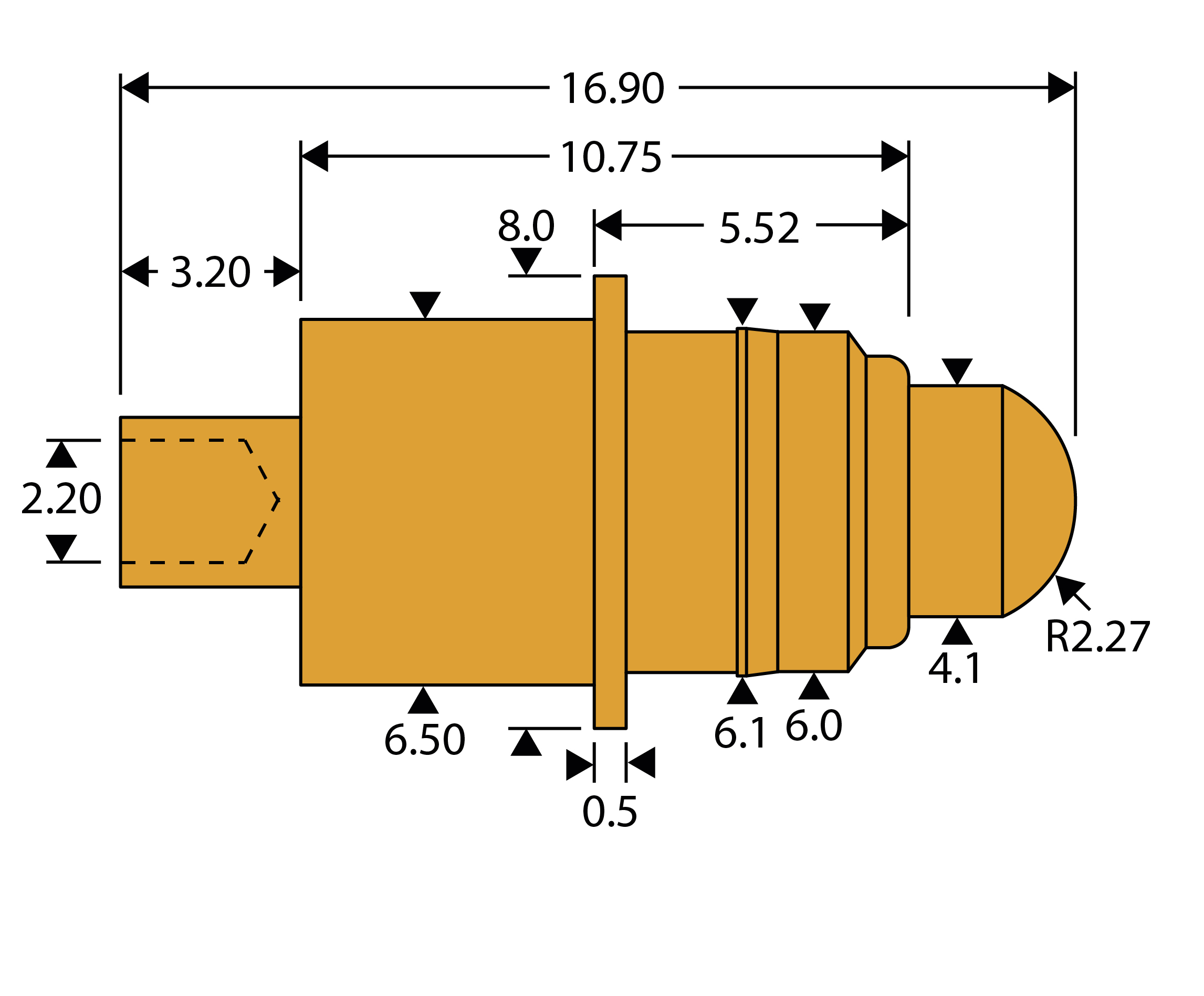

| Full travel |
3mm
|
| Working travel |
2.05mm
|
| Spring force at wkg travel |
PD16JXT-SP-WET 425g
|
| Current rating DC cont (Quiescent) |
8 amps
|
| Current rating DC cont (Active) |
4 amps
|
| Minimum centre spacing |
10mm
|
| Connection method |
Solder into PCB hole
or solder wire onto end |
| Mounting hole size (body) |
Hard plastic 6mm, soft plastic 6.05mm
|
| Durability |
100 000 cycles (min)
|
