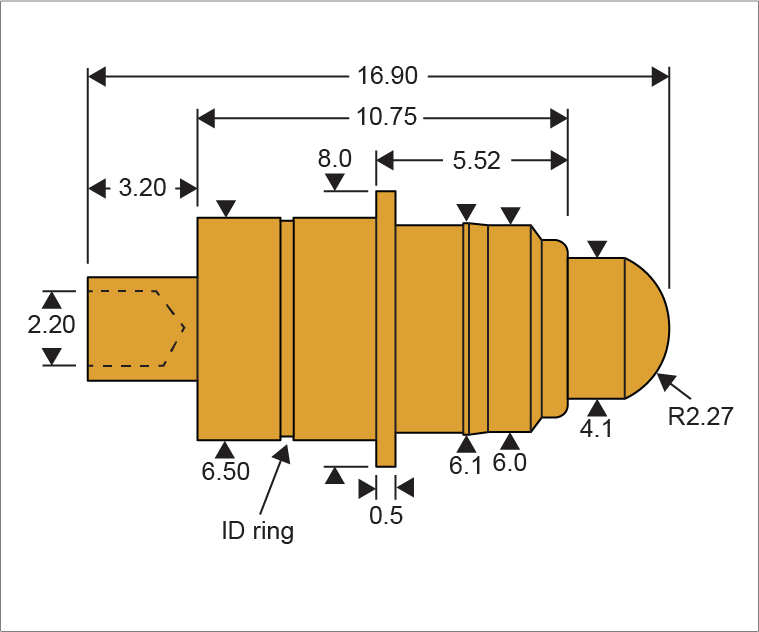

PD16 Series

A low profile, large sized spring contact with solderpot tail for direct wire or PCB connection. Ideal for robust applications. Available in light and heavy spring variants. Has a current rating of 8 amps. Features a barb for retention in a plastic moulding.

Specification Details

Full travel
Working travel
Spring force at wkg travel
PD16JST-SP 200g
PD16JXT-SP 325g
Current rating DC cont (Quiescent)
8 amps
12 amps
Current rating DC cont (Active)
4 amps
6 amps
Minimum centre spacing
Connection method
Solder into PCB hole
or solder wire onto end
Mounting hole size (body)
100 000 cycles (min)

For pricing, availability or to place an order, click on a part no. below.
See receptacles and tools at bottom of page.

Mating Contact Land - Flat Head - Solder Pot
