PA5QPS
A medium reach, general purpose probe for testing at a minimum of 3.2mm centres.
Qty | Price Each (£ GBP, EX VAT) |
---|---|
1 - 1 | 4.01 |
Available Stock :
85
Lead time for additional qty approximately: 15 days
Single Item Price from: £4.01

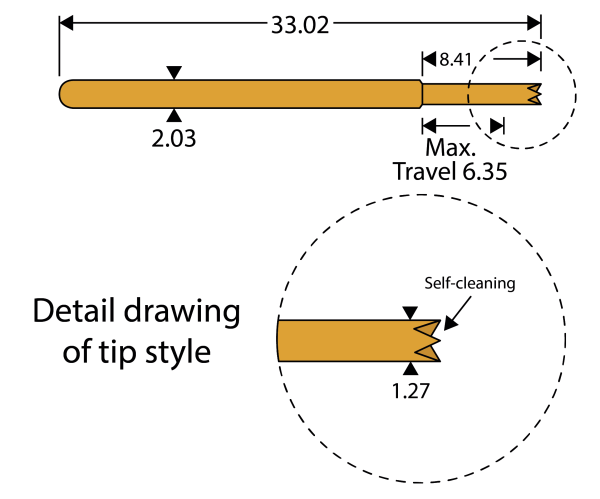

Test Probe Specification
Full travel |
6.35mm (.250″)
|
|
Working travel |
4.24mm (.167″)
|
|
Spring force |
initial
|
at wkg travel
|
‘S’ light spring
|
51g
|
130g
|
‘X’ heavy spring
|
71g
|
180g
|
Current rating DC cont (max) |
6 Amps
|
|
Temperature range | ||
Light spring |
-55 to 105 C
|
|
Heavy spring |
-55 to 150 C
|
|
Minimum test centres |
3.18mm
|
Receptacle Specification
Mounting hole size: 2.39/2.44mm.
2.4mm drill is most commonly used:
Drill part no. DA5, Receptacle insertion tool part no. TA5
