PA5DX – Heavy Spring

PA5DX

A medium reach, general purpose probe for testing at a minimum of 3.2mm centres.
Qty Price Each (£ GBP, EX VAT)
1 - 49 1.62
50 - 99 1.16
100 - 249 1.01
250 - 4999 0.98
Available Stock : 2784

Lead time for additional qty approximately: 12 days

Single Item Price from: £1.62

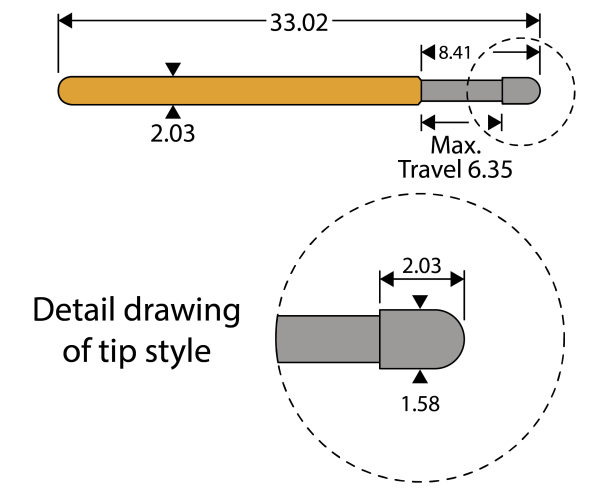

Test Probe Specification

Full travel
6.35mm (.250″)
Working travel
4.24mm (.167″)
Spring force
initial
at wkg travel
‘S’ light spring
51g
130g
‘X’ heavy spring
71g
180g
Current rating DC cont (max)
6 Amps
Temperature range
Light spring
-55 to 105 C
Heavy spring
-55 to 150 C
Minimum test centres
3.18mm

Receptacle Specification

Mounting hole size: 2.39/2.44mm.
2.4mm drill is most commonly used:
Drill part no. DA5, RIT tool part no. TA5
