PA5DS
A medium reach, general purpose probe for testing at a minimum of 3.2mm centres.
| Qty | Price Each (£ GBP, EX VAT) |
|---|---|
| 1 - 49 | 1.62 |
| 50 - 99 | 1.16 |
| 100 - 249 | 1.01 |
| 250 - 4999 | 0.98 |
Available Stock :
18
Lead time for additional qty approximately: 12 days
Single Item Price from: £1.62

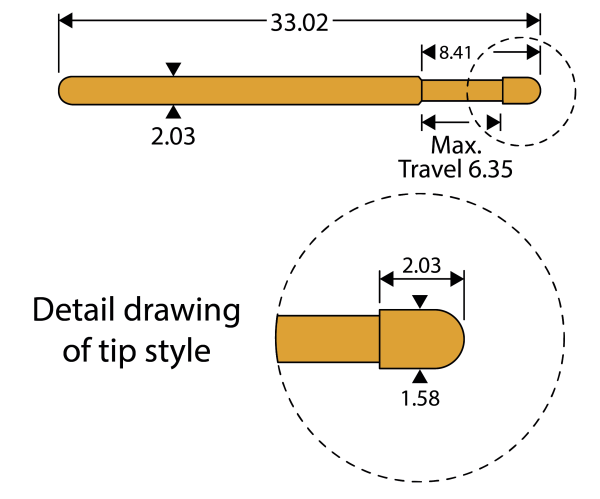

Test Probe Specification
| Full travel |
6.35mm (.250″)
|
|
| Working travel |
4.24mm (.167″)
|
|
| Spring force |
initial
|
at wkg travel
|
|
‘S’ light spring
|
51g
|
130g
|
|
‘X’ heavy spring
|
71g
|
180g
|
| Current rating DC cont (max) |
6 Amps
|
|
| Temperature range | ||
| Light spring |
-55 to 105 C
|
|
| Heavy spring |
-55 to 150 C
|
|
| Minimum test centres |
3.18mm
|
|
Receptacle Specification
Mounting hole size: 2.39/2.44mm.
2.4mm drill is most commonly used:
Drill part no. DA5, Receptacle insertion tool part no. TA5
