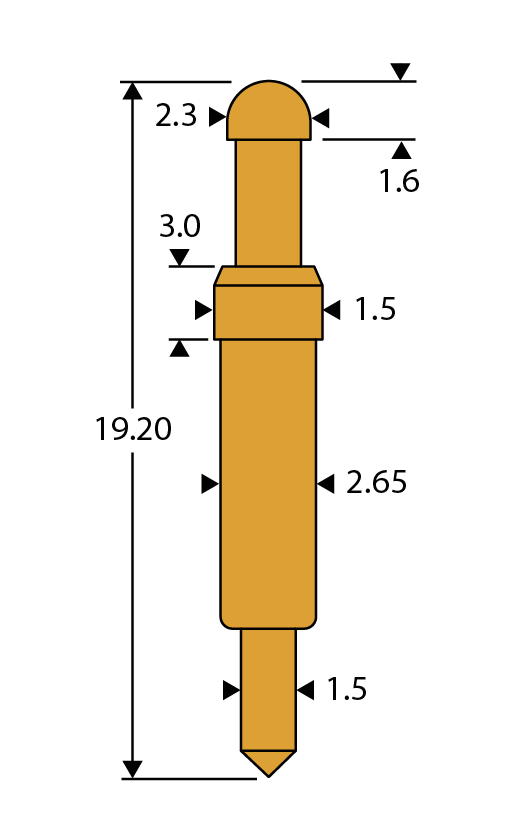

A larger spring contact, similar to the standard PC8 series, differing by having a rigid tail for PCB mounting.
Specifications
| Full travel |
3.5mm (.138″)
|
| Working travel |
2.8mm (.110″)
|
| Spring force at wkg travel |
150g (5.4oz)
|
| Current rating DC cont |
5 amps
|
| Minimum test centres |
4.0mm (.157″)
|
| Other spring forces available |
80g & 250g
|
For pricing, availability or to place an order, click on the part nos. within this section.
For pricing, availability or to place an order, click on a part no. below.
See receptacles and tools at bottom of page.
