PC8 Series

A medium sized spring contact with a short overall length that is suitable for use where a rugged design is required. Can be soldered in. The contact can also be used without its receptacle.

Specification Details

Full travel (minimum)
3.5mm (.138″)
Working travel (max)
2.8mm (.110″)
Spring force at wkg travel
150g (Except DLL 40g, DL 80g, DX 250g).
Current rating DC cont.
5 Amps DC max.
Minimum centres
4.00mm (.157″)


For pricing, availability or to place an order, click on a part no. below.
See receptacles and tools at bottom of page.

Tip Style Flat Head - 2.3mm Medium spring (150g)
Coda Systems | PC8 Series 1
Tip Style Flat Head - 3.5mm Medium spring (150g)
Coda Systems | PC8 Series 2

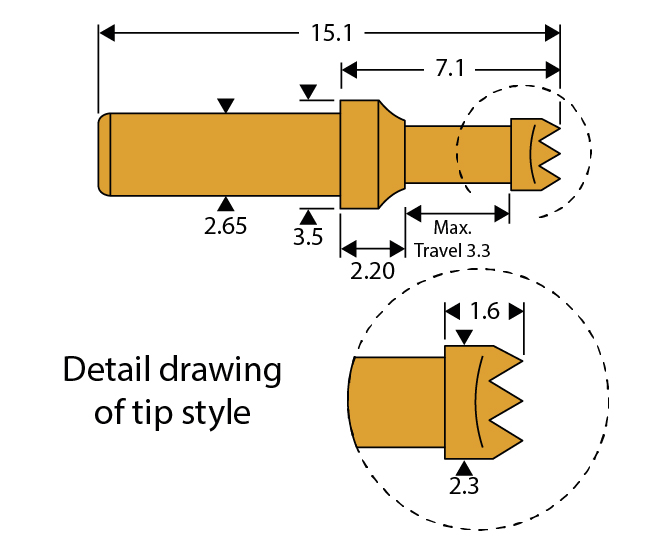

Tip Style Serrated Head - 2.3mm Medium spring (150g)
Coda Systems | PC8 Series 3
Tip Style Serrated Head - 3.5mm Medium spring (150g)
Coda Systems | PC8 Series 4

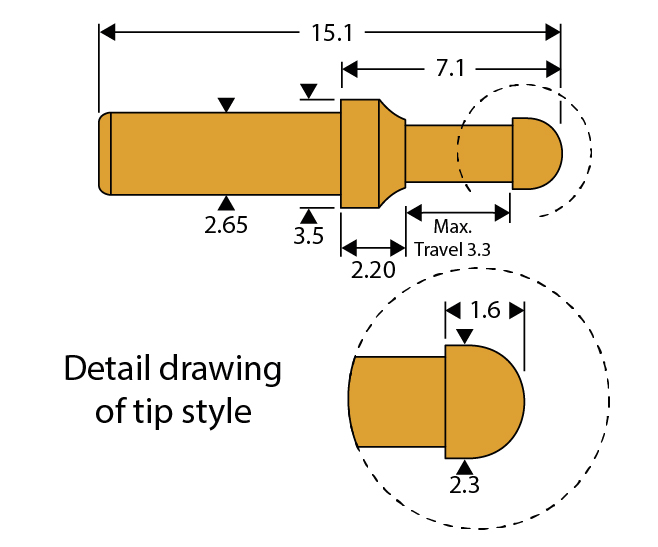

Tip Style Convex Head - 2.3mm Medium spring (150g)
Coda Systems | PC8 Series 5

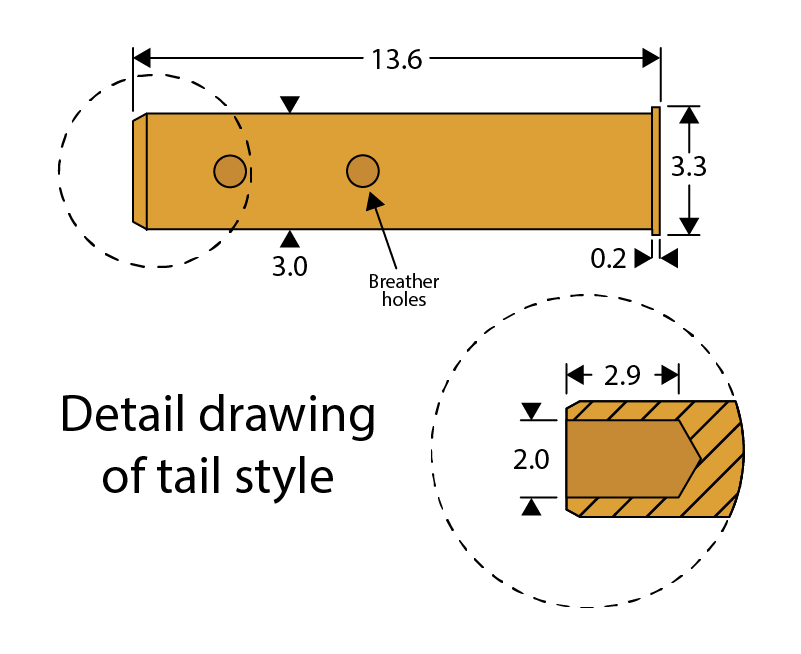

Receptacle: Solder-Pot, Press Fitment
Coda Systems | PC8 Series 6
