SDi-Micro-2-SCT
In stock now .. our smallest docking connector yet, the Swift-Dock-Micro

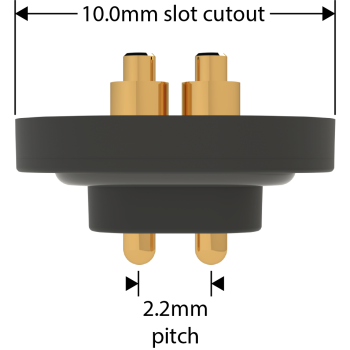

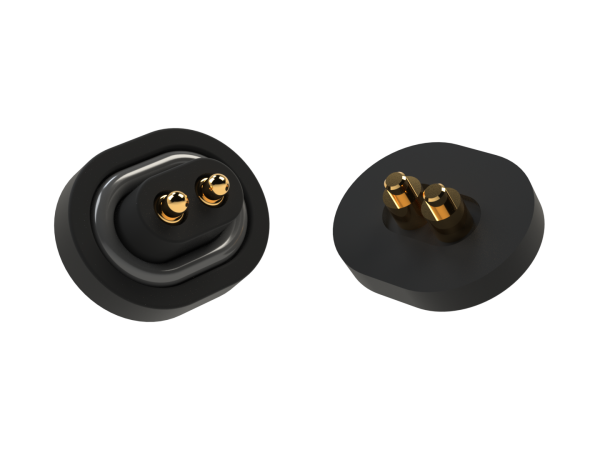

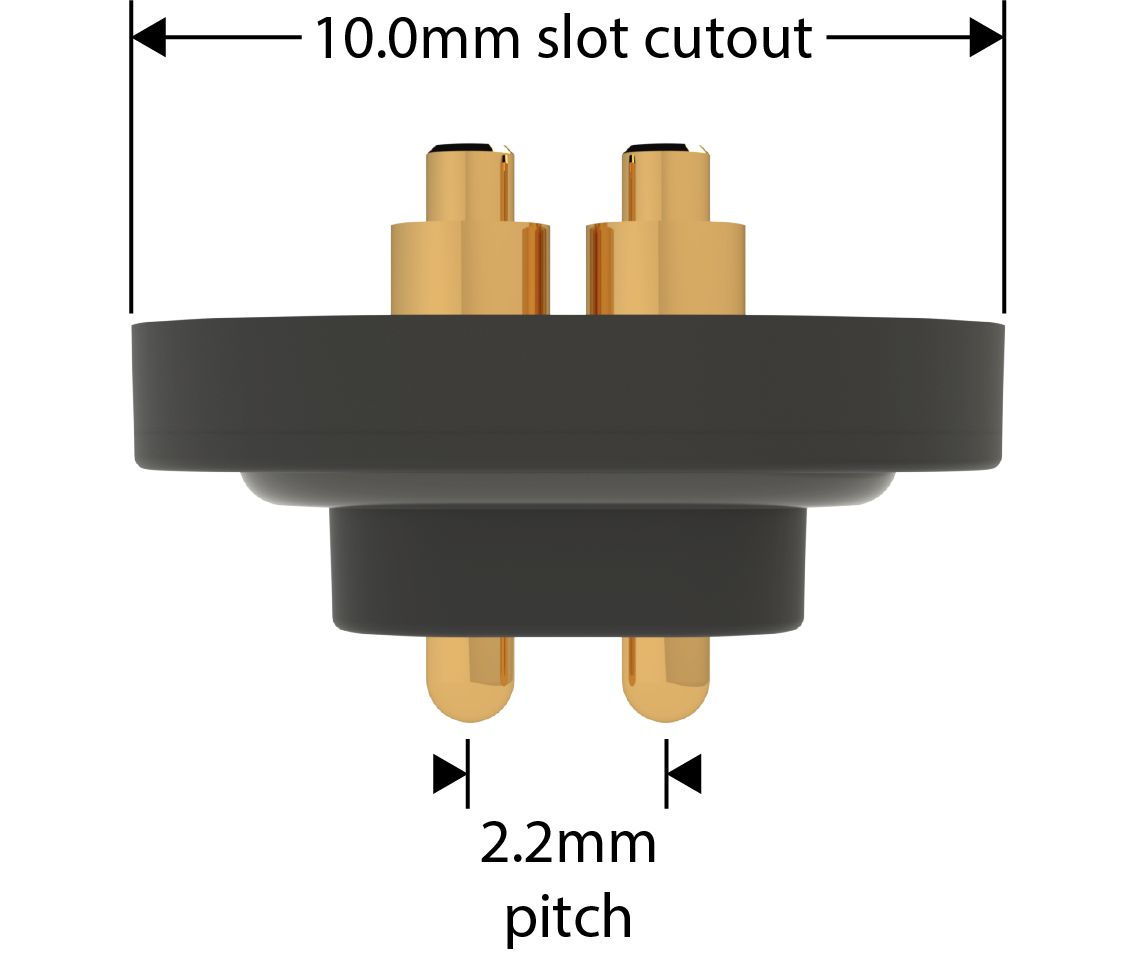

With a minimum center spacing of just 2.2mm, this is the spring contact side of our two pin, spring loaded docking connector, with sealed case fitment type. Specifically designed for internal battery charging of wearable applications such as headsets, belt worn devices, bodycams, ankle tags and smart watches for safety, sporting, security and leisure applications.
Please download the CAD files in the downloads tab below.
With a minimum center spacing of just 2.2mm, this is the spring contact side of our two pin, spring loaded docking connector, with sealed case fitment type. Specifically designed for internal battery charging of wearable applications such as headsets, belt worn devices, bodycams, ankle tags and smart watches for safety, sporting, security and leisure applications.
Please download the CAD files in the downloads tab below.
Available Stock :
275
Lead time for additional qty approximately: 12 days
Single Item Price from: £3.75
| Qty | Price Each (£ GBP, EX VAT) |
|---|---|
| 1 - 49 | 3.75 |
| 50 - 99 | 3.55 |
| 100 - 249 | 3.25 |
| 250 - 499 | 3.15 |
| 500 - 999 | 3.05 |
| 1000 - 4999 | 2.95 |
| 5000 - 9999 | 2.75 |
| 10000 - 49999 | 2.55 |
| 50000 - 99999 | 2.35 |
Spring Contact Specification
| No. of contacts |
2
|
| Maximum travel |
1.1mm
|
| Recommended travel (Max) |
1mm
|
| Recommended travel (Min) |
0.8mm
|
| Spring force at recommended travel (Max) |
90g (2 pins)
|
| Current rating DC (max) |
250mA amps DC continuous per pin
|
| Material; spring contact & land |
Gold plated Lead free brass
|
| Operating temperature range |
-40 – to +150’C
|
Moulding Specification
| Material |
Nylon6
|
| Colour |
Black. Other colours available for volume qtys
|
| Fitment specification |

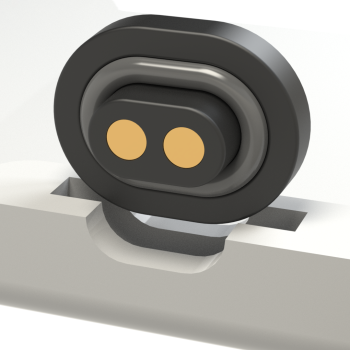

Fit into a dedicated slot in the casework
|
| UL rating |
UL94-2. By request UL94-0
|
| IP rating |
IP64
|
Connection specification
| Solder pins into a PCB, or flexi-circuit cable assembly having a solder connection |
