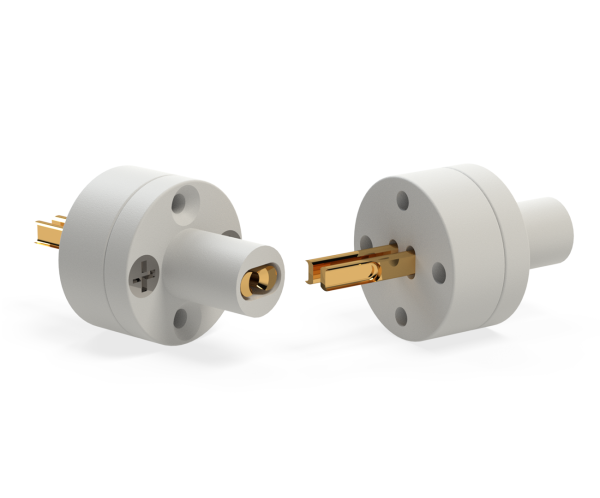

KWP620
A series of large kelvin/4-pole, large load current, test socket modules for testing wound power components up to a maximum current of 50 amps.
These modules are designed to fit to a panel, to enable accurate positioning with the aid of guide plates. use. For fitment advice see the pdf instruction sheet in the downloads section of each part.
These modules are designed to fit to a panel, to enable accurate positioning with the aid of guide plates. use. For fitment advice see the pdf instruction sheet in the downloads section of each part.
Available Stock :
10
Lead time for additional qty approximately: 9 days
Single Item Price: £79.95
| Component lead diameter range |
1.3 – 1.8mm, round lead only
|
|
| Minimum test center spacing |
18mm
|
|
| Temperature rating max |
250’C
|
|
| Maximum current |
50 amps
|
|
| Number of insertion cycles max. |
30k to 100k
|
|
| Materials: | ||
| Pin |
Heat treated Beryllium copper alloy, gold plated over nickel
|
|
| Insulator |
Glass filled Teflon/PTFE
|
|
