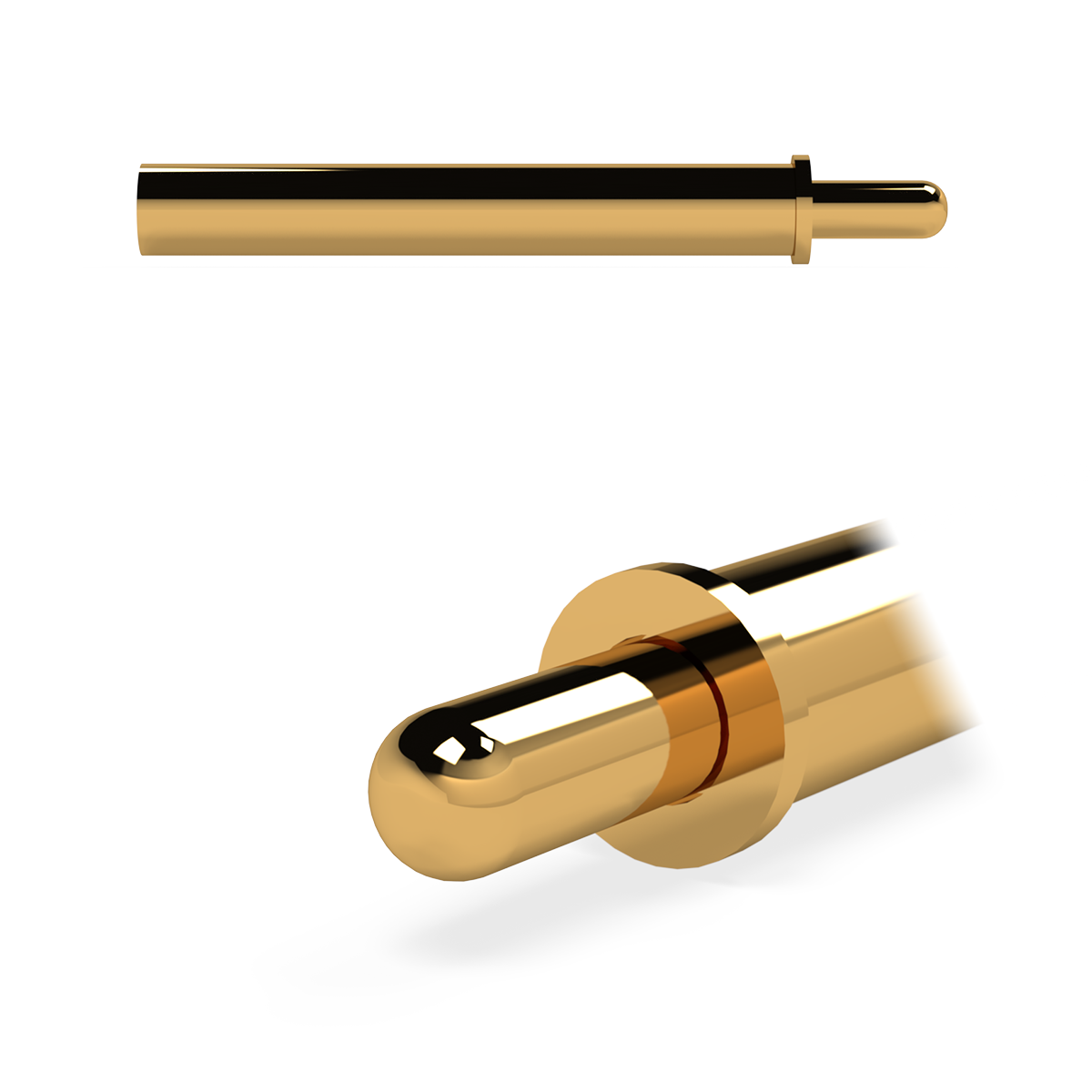

PD18JX

PD18JS

A medium sized spring contact, very similar to the PD7JS suitable for use where a rugged construction is required. This item is a non-replaceable type and does not need a receptacle. Solder in or wire into solder pot. Heavy spring
Qty Price Each (£ GBP, EX VAT)
1 - 49 2.25
50 - 99 2.09
100 - 249 1.89
250 - 29999 1.62
Available Stock : 512

Lead time for additional qty approximately: 12 days

Single Item Price from: £2.25
Full travel
2.7mm
Working travel
2.35mm
Spring force at wkg travel
120g
Current rating DC cont
3 amps max
Minimum spacing
4.75mm
Mounting hole size
2.35mm interference fitment
2.4mm epoxy fitment (drill DA5)
