PA3HPS

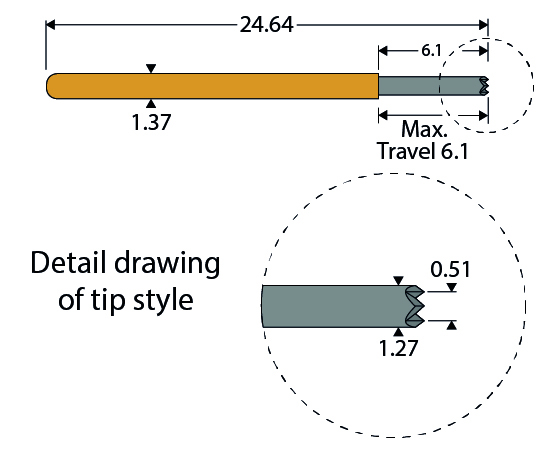

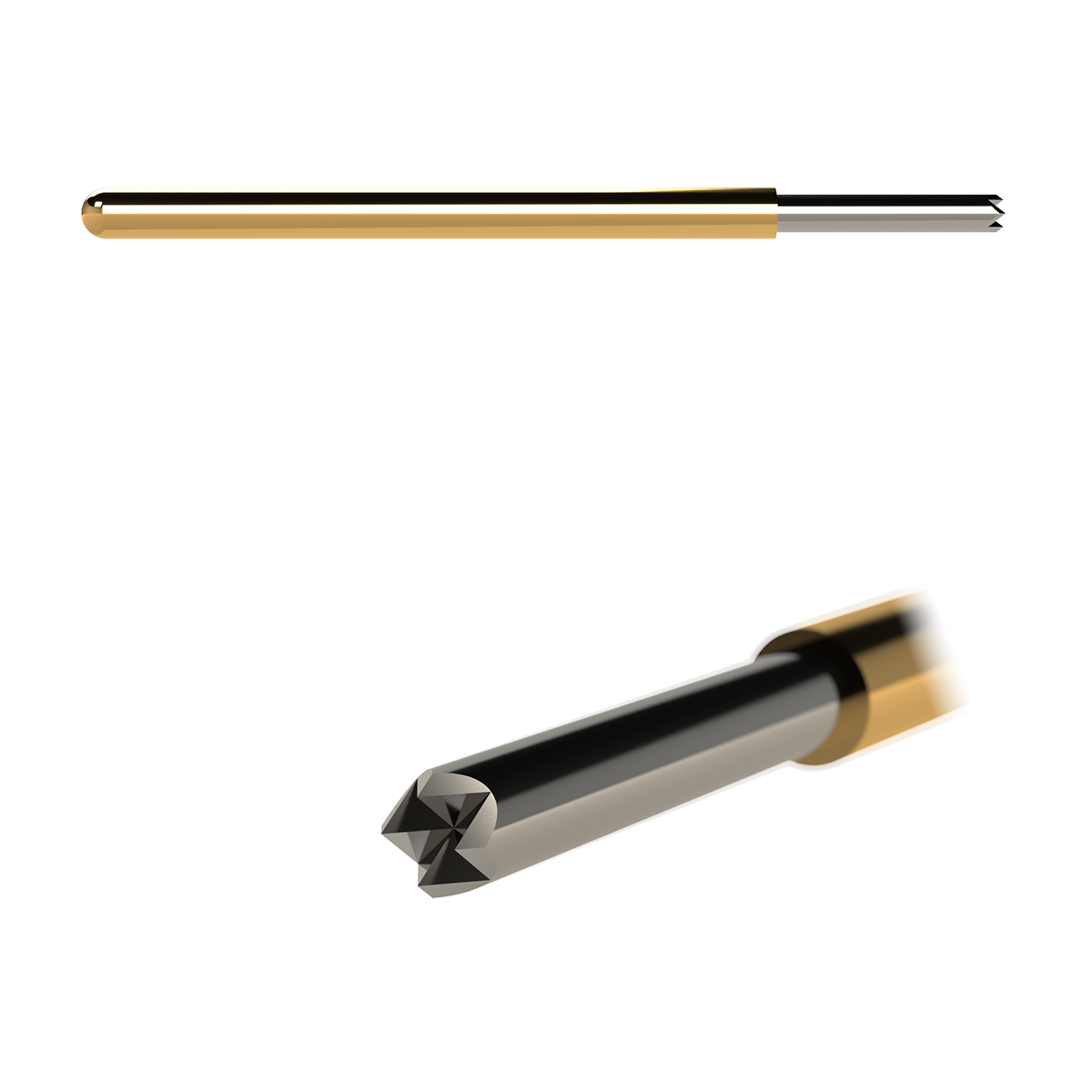

A short reach, general purpose test probe for 2.54mm test centres. It differs from the PA3HS in that it has a full travel of 6.1mm. Serrated tip-style.
Available Stock :
3400
Lead time for additional qty approximately: 12 days
Single Item Price: £0.85
Test Probe Specification
| Full travel |
.160″ (4.06mm)
|
|
| Working travel |
.106″ (2.69mm)
|
|
| Spring force |
initial
|
at wkg travel
|
|
‘S’ Light spring
|
1.1oz (31g)
|
3.5oz (99g)
|
|
‘X’ Heavy spring
|
2.6oz (75g)
|
6.5oz (184g)
|
| Current rating DC (max) |
3 Amps
|
Temperature range |
-55 to 105 C
|
| Minimum test centres |
.100″ (2.54mm)
|
|
Receptacle Specification
Mounting hole size: 1.7/1.75mm.
1.75mm drill is most commonly used:
Drill part no. DA3, Receptacle insertion tool part no. TA3, TA4A
How To Use
Product Selection (PDF)
Watch our YouTube video about test probe and receptacle selection
Fitment & Usage (PDF)
After Care (PDF)
