PA2HS – Light Spring

PA2HS

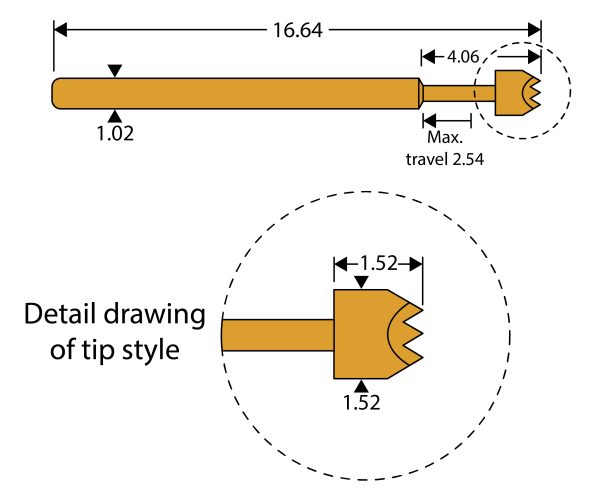

A short reach general purpose test probe for 1.91mm test centres. Serrated tip-style.
Qty Price Each (£ GBP, EX VAT)
1 - 49 1.99
50 - 99 1.42
100 - 249 1.25
250 - 499 1.09
500 - 999 0.99
1000 - 19999 0.90
Available Stock : 140

Lead time for additional qty approximately: 12 days

Single Item Price from: £1.99

Test Probe Specification

Full travel
.100″ (2.54mm)
Working travel
.067″ (1.70mm)
Spring force
initial
at wkg travel
Light spring
1.1oz (32g)
2.5oz (71g)
Heavy spring
1.3oz (37g)
4.5oz (128g)
Current rating DC (max)
3 Amps
Temperature range
-55 to 150 C
Minimum test centres
.075″ (1.91mm)

Receptacle Specification

Mounting hole size: 1.35/1.40mm.
1.4mm drill is most commonly used:
Drill part no. DA2, Receptacle insertion tool part no. TA2
