RA1SF

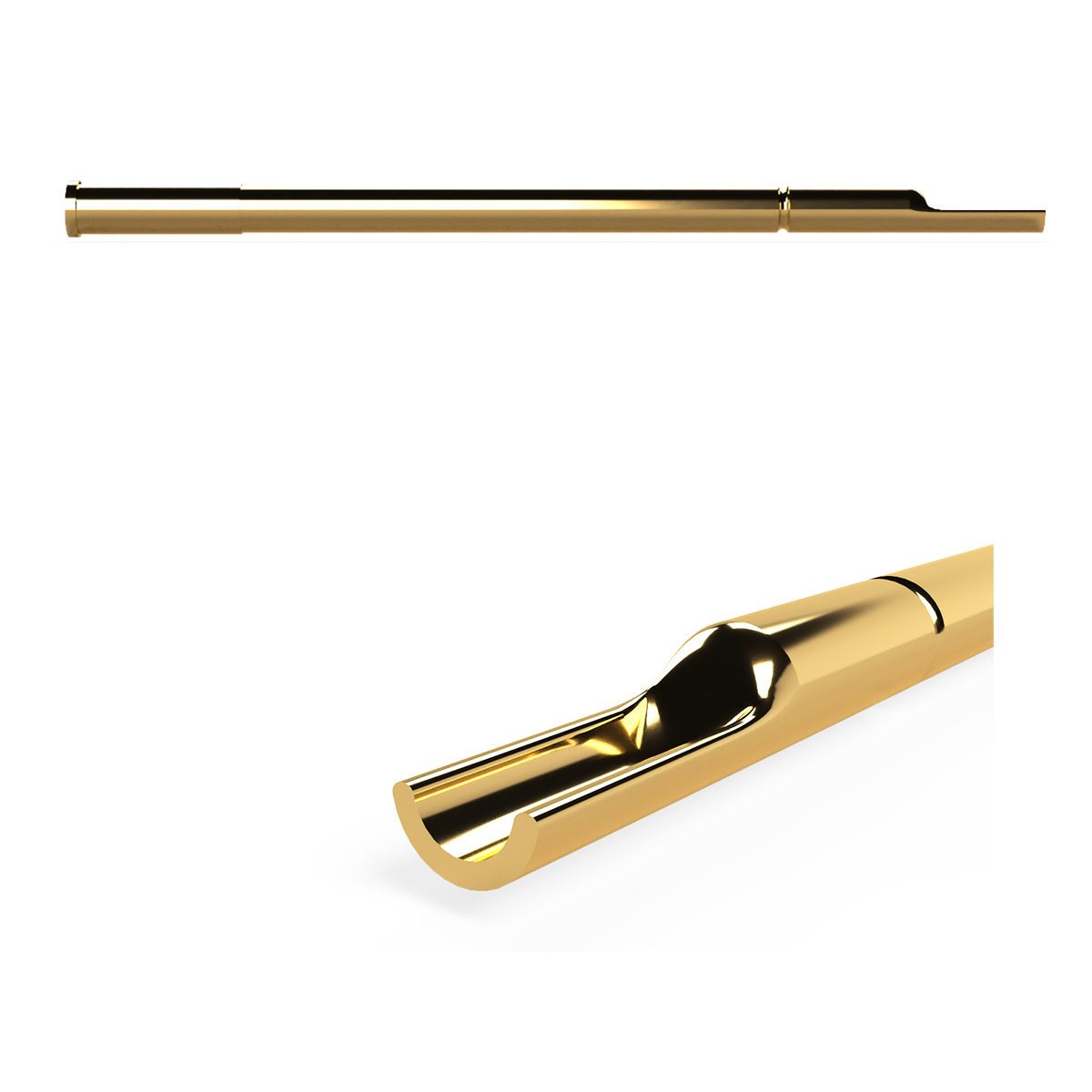

Receptacle for PA1 series test probe, Solder Cup, Flush Fitment With Press Ring
The PA1 probe’s barrel protrudes by 0.7mm when installed correctly.
The PA1 probe’s barrel protrudes by 0.7mm when installed correctly.
| Qty | Price Each (£ GBP, EX VAT) |
|---|---|
| 1 - 49 | 1.11 |
| 50 - 99 | 1.07 |
| 100 - 249 | 1.01 |
| 250 - 499 | 0.97 |
| 500 - 2999 | 0.82 |
| 3000 - 19999 | 0.78 |
Available Stock :
0
Lead time for additional qty approximately: 90 days
Single Item Price from: £1.11
Test Probe Specification
| Full travel |
.100″ (2.54mm)
|
|
| Working travel |
.067″ (1.70mm)
|
|
| Spring force |
initial
|
at wkg travel
|
|
Light spring
|
0.6oz (17g)
|
2.8oz (79g)
|
|
Heavy spring
|
0.8oz (22g)
|
3.7oz (105g)
|
| Temperature range | ||
| Light spring |
-55 to 150 C
|
|
| Heavy spring |
-55 to 105 C
|
|
| Current rating DC (max) |
3 Amps
|
|
| Minimum test centres |
.050″ (1.27mm)
|
|
Receptacle Specification
Mounting hole size: 0.89/0.93mm.
0.90mm drill is most commonly used:
Drill part no. DA1, Receptacle insertion tool part no. TA1
Receptacles for this series are displayed at the bottom of this section.
