RA1C-W450
Receptacle for PA1 series, Crimp, Flush Fitment With Press Ring (pre-wired 450mm)
| Qty | Price Each (£ GBP, EX VAT) |
|---|---|
| 1 - 49 | 2.19 |
| 50 - 99 | 1.56 |
| 100 - 249 | 1.37 |
| 250 - 499 | 1.22 |
| 500 - 999 | 1.09 |
| 1000 - 2999 | 1.00 |
| 3000 - 4999 | 0.91 |
| 5000 - 9999 | 0.84 |
| 10000 - 19999 | 0.79 |
Available Stock :
20
Lead time for additional qty approximately: 12 days
Single Item Price from: £2.19
Test Probe Specification
| Full travel |
.100″ (2.54mm)
|
|
| Working travel |
.067″ (1.70mm)
|
|
| Spring force |
initial
|
at wkg travel
|
|
Light spring
|
0.6oz (17g)
|
2.8oz (79g)
|
|
Heavy spring
|
0.8oz (22g)
|
3.7oz (105g)
|
| Temperature range | ||
| Light spring |
-55 to 150 C
|
|
| Heavy spring |
-55 to 105 C
|
|
| Current rating DC (max) |
3 Amps
|
|
| Minimum test centres |
.050″ (1.27mm)
|
|

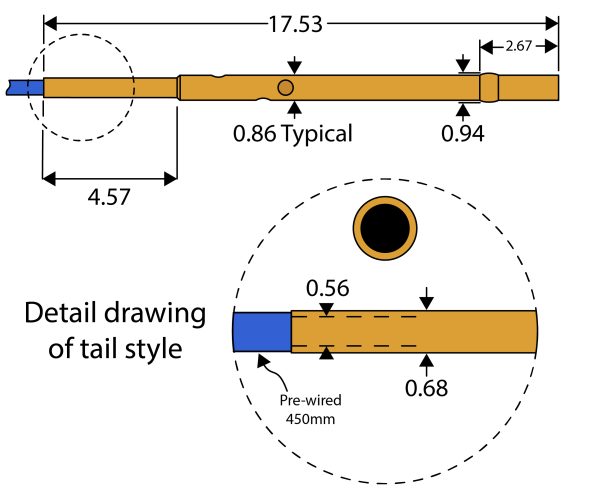

Receptacle Specification
Mounting hole size: 0.89/0.93mm.
0.90mm drill is most commonly used:
Drill part no. DA1, Receptacle insertion tool part no. TA1
Receptacles for this series are displayed at the bottom of this section.
