PA1AS

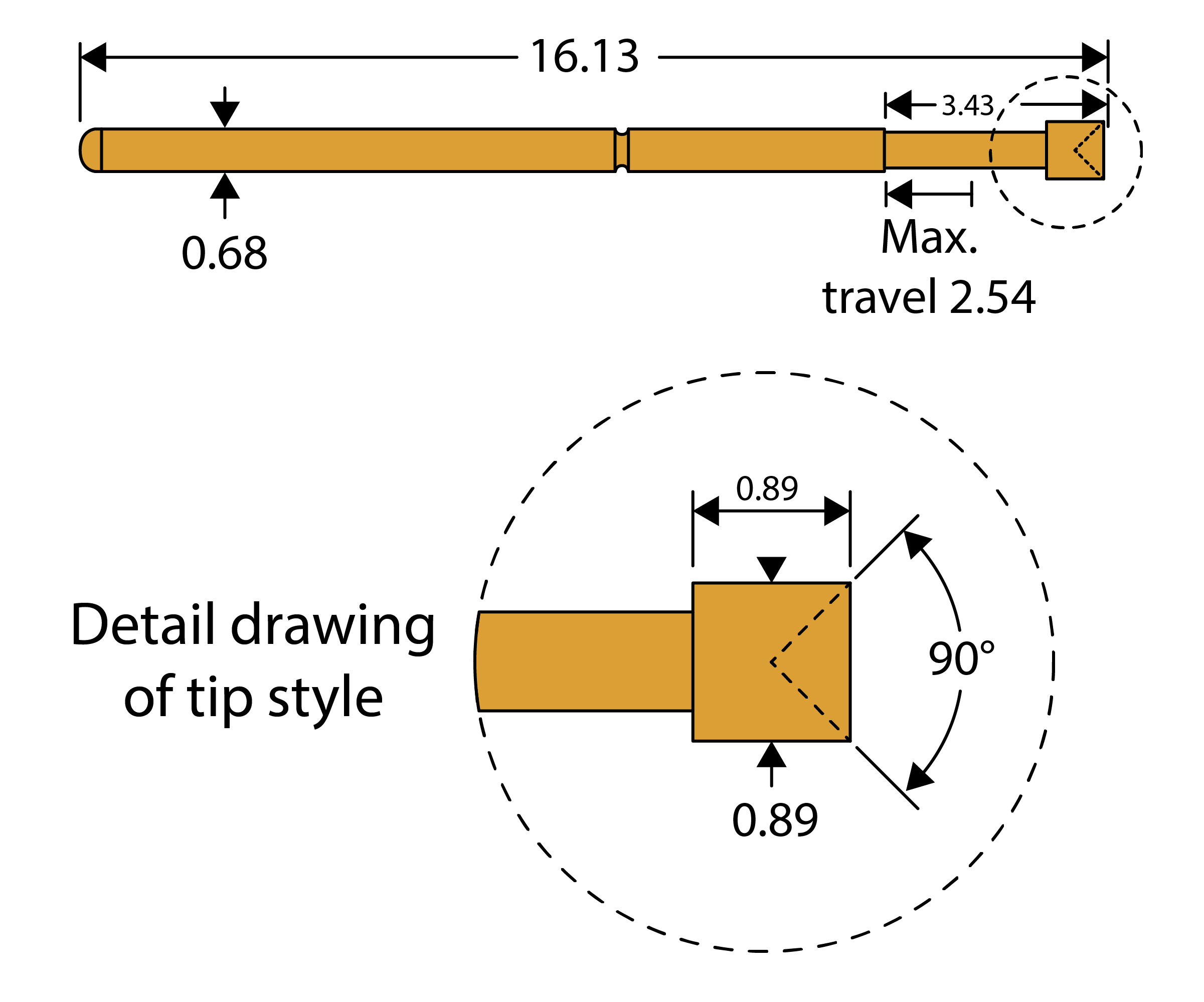

A short reach general purpose test probe for 1.27mm test centres. Concave tip-style.
Qty | Price Each (£ GBP, EX VAT) |
---|---|
1 - 49 | 1.99 |
50 - 99 | 1.42 |
100 - 249 | 1.25 |
250 - 499 | 1.09 |
500 - 999 | 0.99 |
1000 - 9999 | 0.90 |
Available Stock :
180
Lead time for additional qty approximately: 12 days
Single Item Price from: £1.99
Test Probe Specification
Full travel |
.100″ (2.54mm)
|
|
Working travel |
.067″ (1.70mm)
|
|
Spring force |
initial
|
at wkg travel
|
Light spring
|
0.6oz (17g)
|
2.8oz (79g)
|
Heavy spring
|
0.8oz (22g)
|
3.7oz (105g)
|
Temperature range | ||
Light spring |
-55 to 150 C
|
|
Heavy spring |
-55 to 105 C
|
|
Current rating DC (max) |
3 Amps
|
|
Minimum test centres |
.050″ (1.27mm)
|
Receptacle Specification
Mounting hole size: 0.89/0.93mm.
0.90mm drill is most commonly used:
Drill part no. DA1, Receptacle insertion tool part no. TA1
Receptacles for this series are displayed at the bottom of this section.
