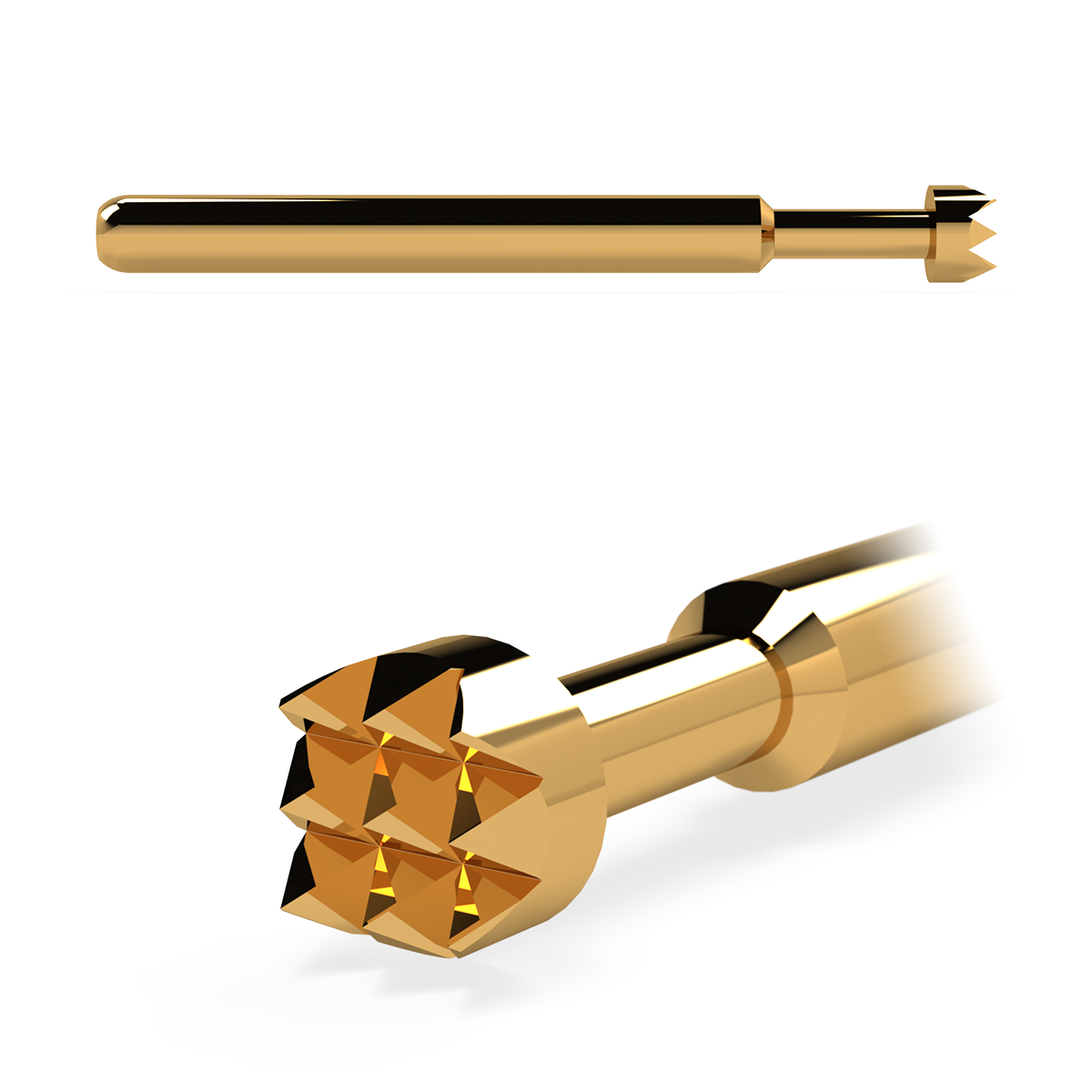

PA7HS
A medium reach, general purpose probe, with a high spring force for testing at a minimum of 4.75mm centres.
| Qty | Price Each (£ GBP, EX VAT) |
|---|---|
| 1 - 49 | 3.07 |
| 50 - 99 | 2.52 |
| 100 - 4999 | 2.30 |
Available Stock :
52
Lead time for additional qty approximately: 12 days
Single Item Price from: £3.07

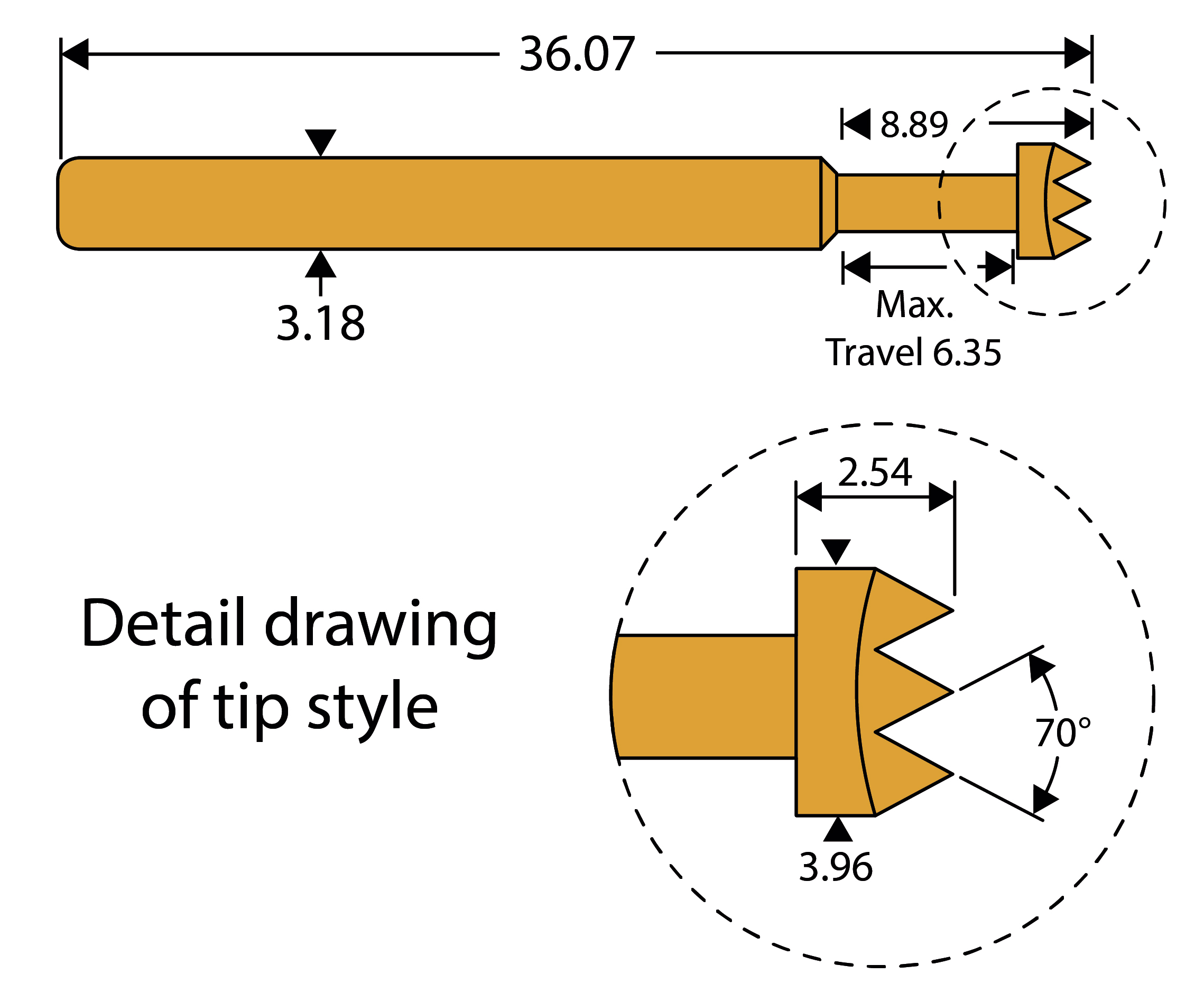

Test Probe Specification
| Full travel |
6.35mm (.250″)
|
|
| Working travel |
4.24mm (.167″)
|
|
| Spring force |
initial
|
at wkg travel
|
|
173g
|
454g
|
|
| except PA7JL |
50g
|
213g
|
| Current rating DC cont (max) |
8 Amps
|
Temperature range |
-55 to 150 C
|
| Minimum test centres |
4.75mm
|
Receptacle Specification
Mounting hole size: 3.58/3.63mm.
3.6mm drill is most commonly used:
Drill part no. DA7, Receptacle insertion tool part no. TA7
How To Use
Related Products
Receptacle - Wire Wrap
RA7W
Receptacle - Solder Cup
RA7S
Receptacle - Crimp
