Both the PA0 'R' and PM3 ‘R’ series use a receptacle, giving the added advantage of probe replaceability, yet still allowing testing at a minimum spacing of 0.64mm. The receptacle may have the convenient option of a pre-attached cable.

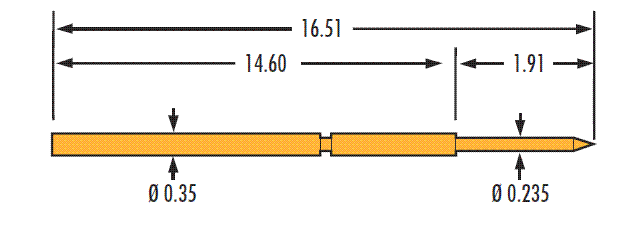

Test Probe Specification
| Full travel |
1.91mm
|
|
| Working travel |
1.33mm
|
|
| Spring force |
at wkg travel
|
|
|
30g
|
||
| Current rating DC (max) |
2 Amps
|
|
| Minimum test centres |
0.64mm
|
|
| Drill hole size (no receptacle) |
0.36 – 0.38mm
|
|
| Drill hole size (standalone) |
0.52 – 0.55mm
|
|
Installation

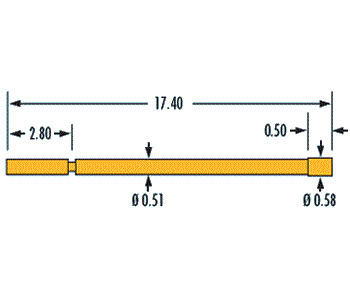

The replaceable microprobes feature a receptacle with a collar at the top of the barrel, which is used as a stop in the fitment process. Due to the minute barrel diameters and thin walls, it is imperative that the drilled hole diameter (0.52mm – 0.55mm) and straightness are very accurate.
For pricing, availability or to place an order, click on a part no. below.
See receptacles and tools at bottom of page.
