PD4 Series

A series of non-replaceable, press-fit spring contacts which have a solderpot or solder-in-connection instead of a receptacle. Their small size and short overall length make them ideal in interfacing applications such as battery contacts.

Specification Details

Full travel 1.65mm (.065″)
Working travel 1.1mm (.004″)
Spring force
Initial 43g (1.5oz)
>working travel 85g (3.0oz)
Minimum test centres 2.54mm (.1″)
Current rating DC cont 5 amps
Mounting hole size 1.65mm (.067″)

For pricing, availability or to place an order, click on a part no. below.
See receptacles and tools at bottom of page.

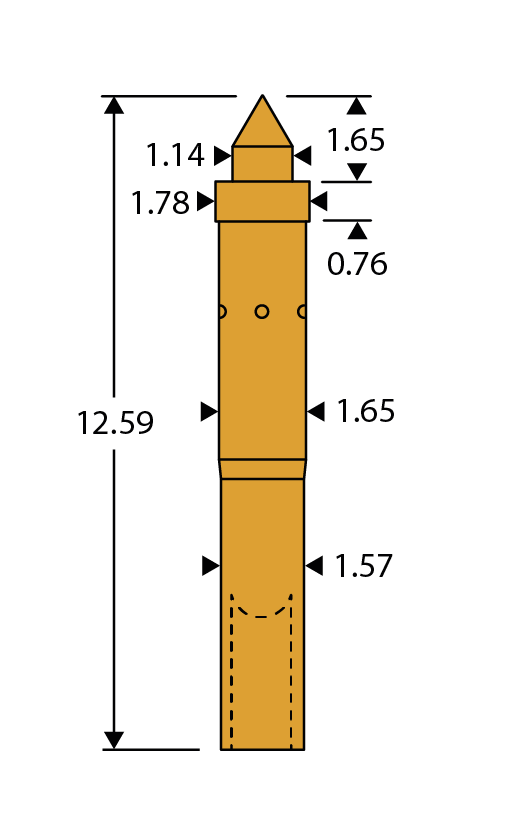

Coda Systems | PD4 Series 0
Tip Style SERRATED 1.8mm
Coda Systems | PD4 Series 1
Tip Style RADIUS
Coda Systems | PD4 Series 2
