PD12 Series

A small spring contact with a short overall length which makes it ideal for use in confined areas. This series uses a receptacle which allows the contact to be replaceable. The receptacle can be soldered in or a wire can be connected to the tail.

Specification Details

Full travel
0.7mm (.138″)
Working travel
0.45mm (.110″)
Spring force at full travel
Current rating DC cont
1 amps
Minimum test centres
2.54mm (.157″)

For pricing, availability or to place an order, click on a part no. below.
See receptacles and tools at bottom of page.

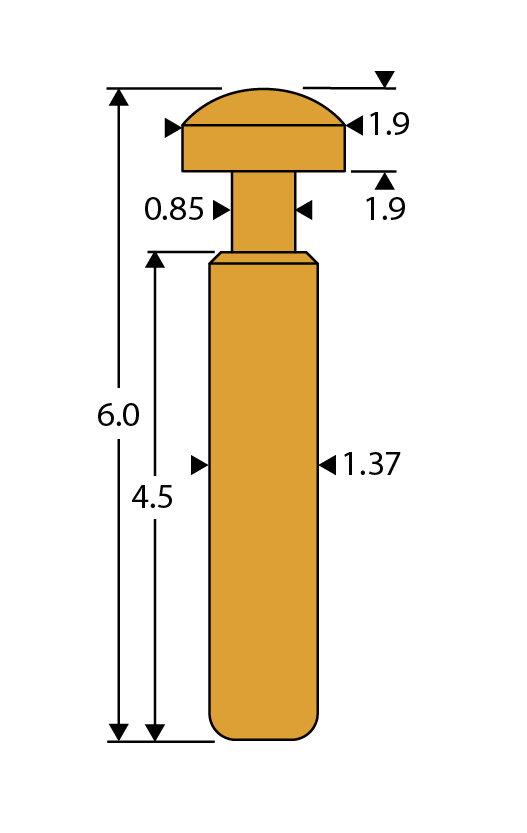

Tip Style Dome Head
