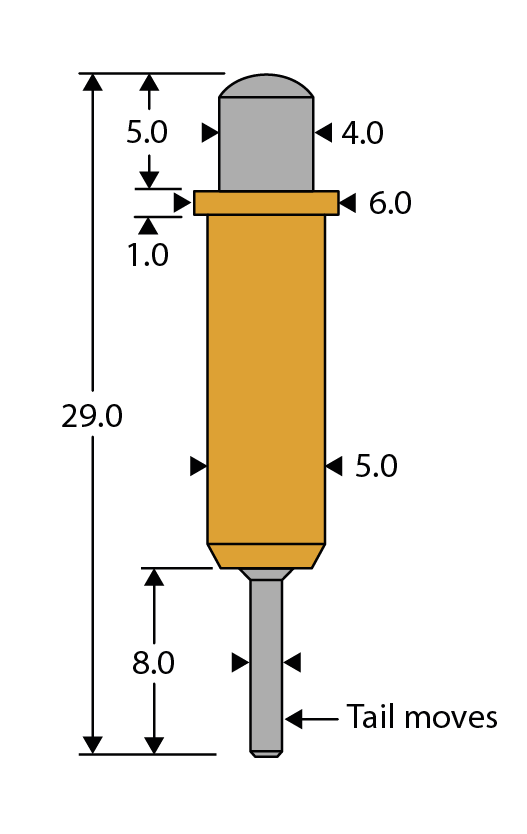

PC4T Series

A large spring contact with a moving tail that is suitable for use in higher current applications and where a rugged design is required.

Specification Details

Full travel
4.0mm (.157″)
Working travel
3.2mm (.126″)
Spring force at wkg travel
S Light spring
150g (5.4oz)
X Heavy spring
300g (10.8oz)
U Ultra Heavy spring
800g (28oz)
Current rating DC cont
5 Amps and 15 amps when connection directly to tail
Minimum test centres
6.50mm (.256″)

For pricing, availability or to place an order, click on a part no. below.
See receptacles and tools at bottom of page.

Receptacle / Solder-tag
