PC3 Series

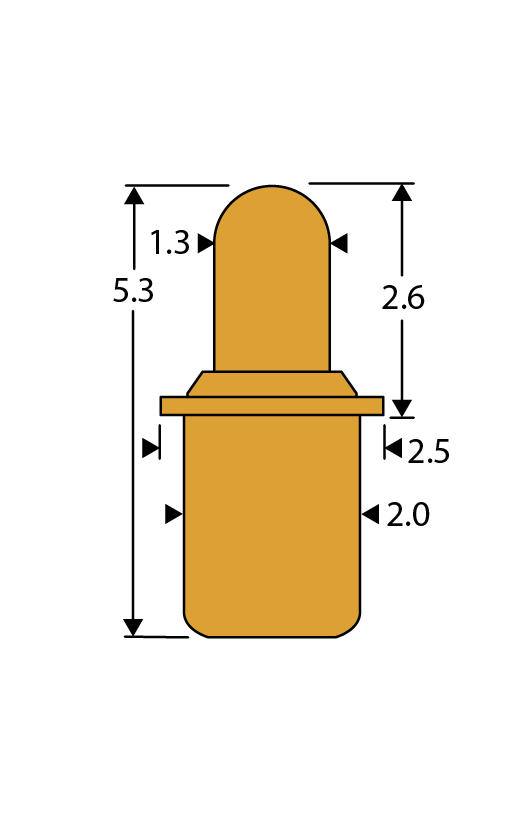

A very short overall length is the major design feature of the PC3 series. This allows it to be used in very confined areas.

Specification Details

Full travel
1.20mm (.048″)
Working travel
1.00mm (.039″)
Spring force
at wkg travel
Light spring
100g (3.6oz)
Heavy spring
200g (7.2oz)
Current rating DC cont
3 Amps
Minimum test centres
3.00mm (.118″)


For pricing, availability or to place an order, click on a part no. below.
See receptacles and tools at bottom of page.

Tip Style SPRING CONTACT/Plain flat/200g spring
Coda Systems | PC3 Series 0
Tip Style SPRING CONTACT/Plain cup/200g spring
Coda Systems | PC3 Series 1
Tip Style SPRING CONTACT/Plain serrated/200g spring
Coda Systems | PC3 Series 2
Tip Style SPRING CONTACT/Plain radius/100g spring
Coda Systems | PC3 Series 3
Tip Style SPRING CONTACT/Plain radius/100g spring/Sealed
Coda Systems | PC3 Series 4
Tip Style SPRING CONTACT/Plain radius/200g spring/Sealed
Coda Systems | PC3 Series 5
Receptacle: SOLDER TAIL
Coda Systems | PC3 Series 6
Receptacle: SOLDER-IN/PRESS FIT
Coda Systems | PC3 Series 7
Receptacle: SOLDER-IN/PRESS FIT
Coda Systems | PC3 Series 8
