The ELPA4 series has an extra-long full travel of .492" (12.5mm) compared with the .410" (10.4mm) of the LPA4 series, and with .250"(6.35mm) of the standard PA4 series ATE probes. They will fit the standard RA4 series receptacles. Additionally the ELPA4 series probes has spring force of 8.8oz (250gm) which will help in penetrating contaminates on unclean test points.
Test Probe Specification
| Full travel |
12.5mm (.492″)
|
|
| Working travel |
9.6mm (.378″)
|
|
| Spring forces |
initial
|
at wkg travel
|
|
40g (2.5oz)
|
225g (8.8oz)
|
|
| Current rating DC cont (max) |
3 Amps
|
|
| Minimum test centres |
2.54mm (.100″)
|
|

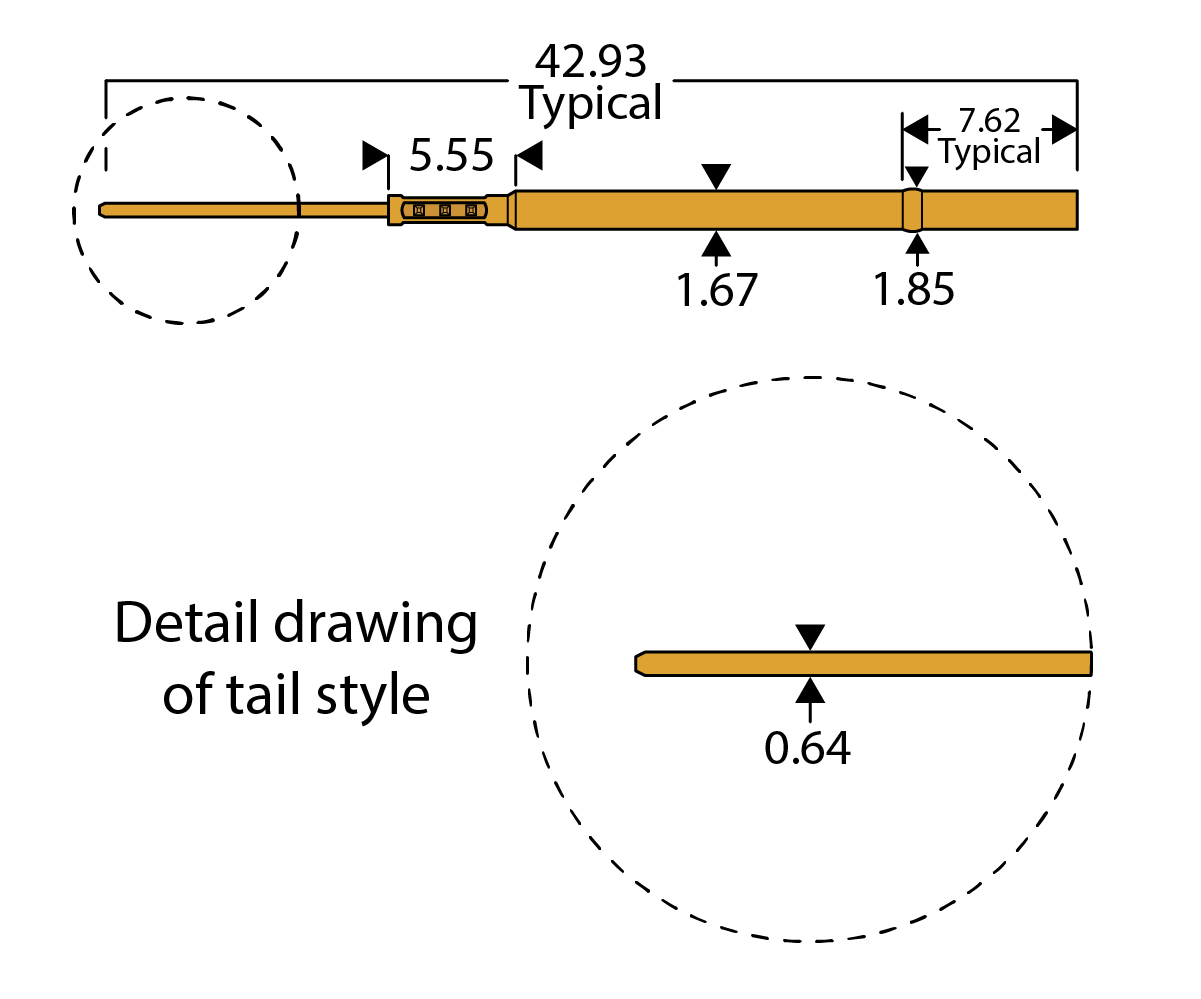

Receptacle Specification
Mounting hole size: 1.7/1.75mm.
1.75mm drill is most commonly used:
Drill part no. DA3. Receptacle insertion tool part nos. TA3 and TA4A
Product Selection
Fitment & Usage
After Care
For pricing, availability or to place an order, click on a part no. below.
See receptacles and tools at bottom of page.
